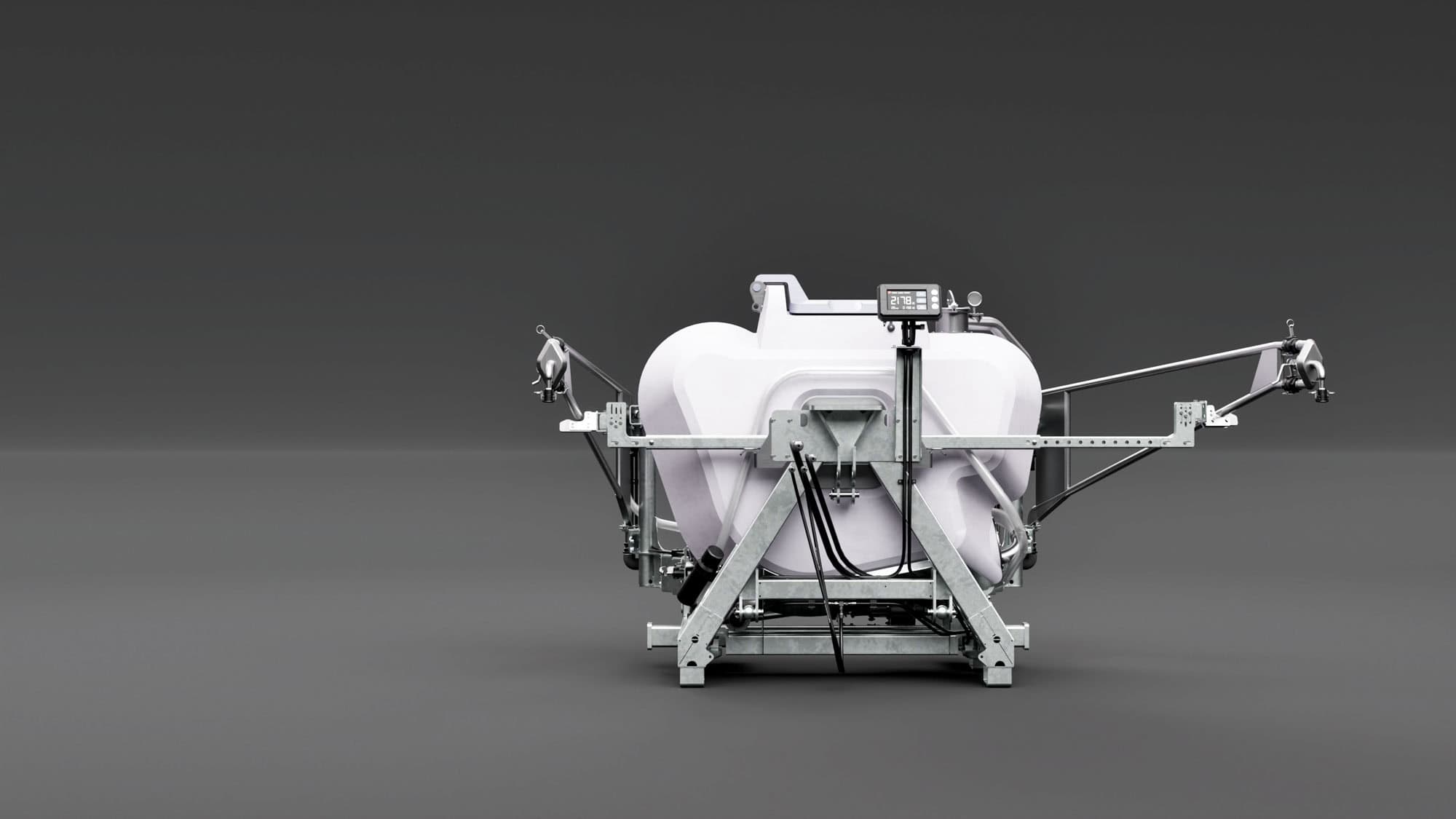

Tow and Fert Multi 1200

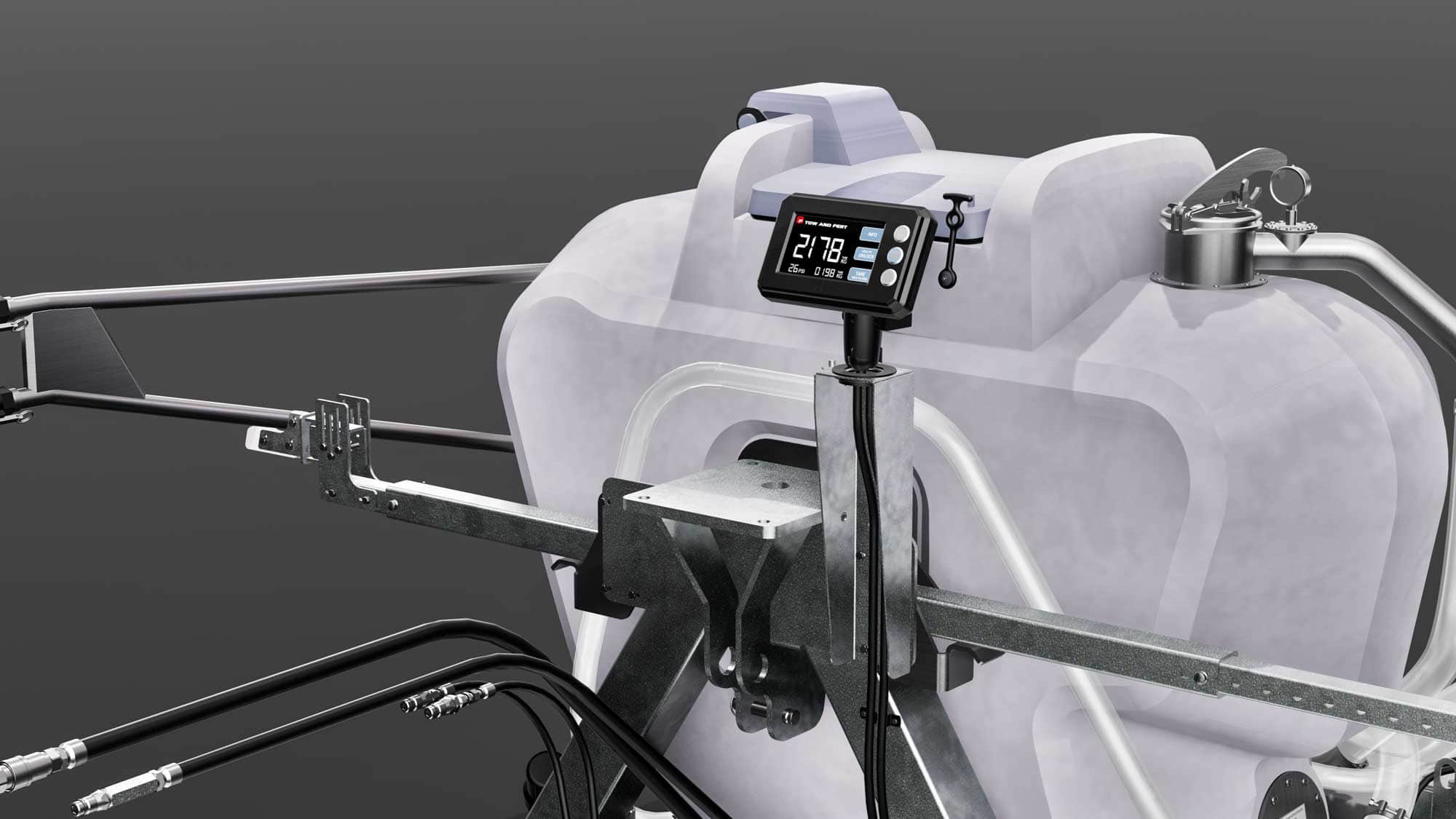

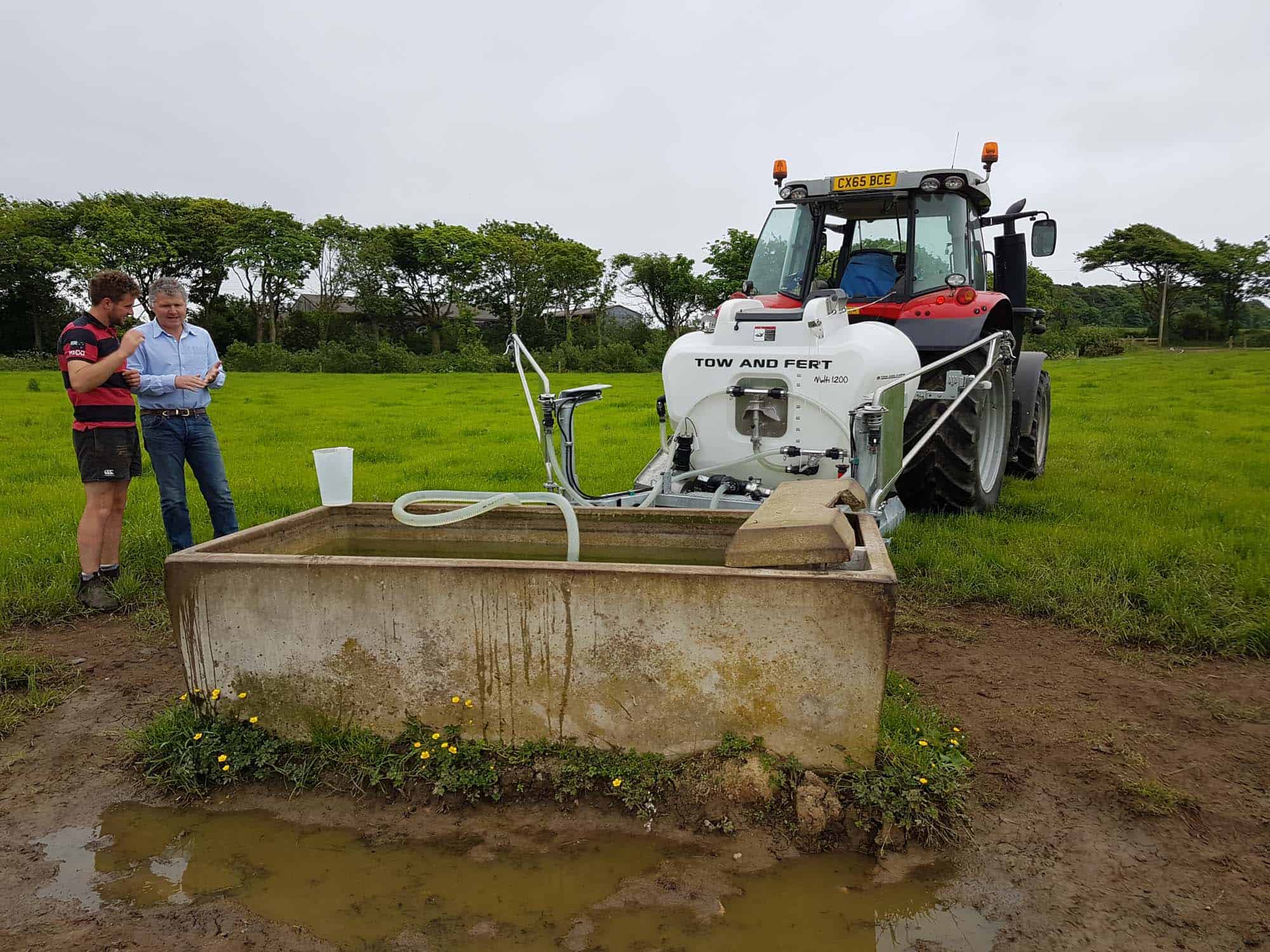

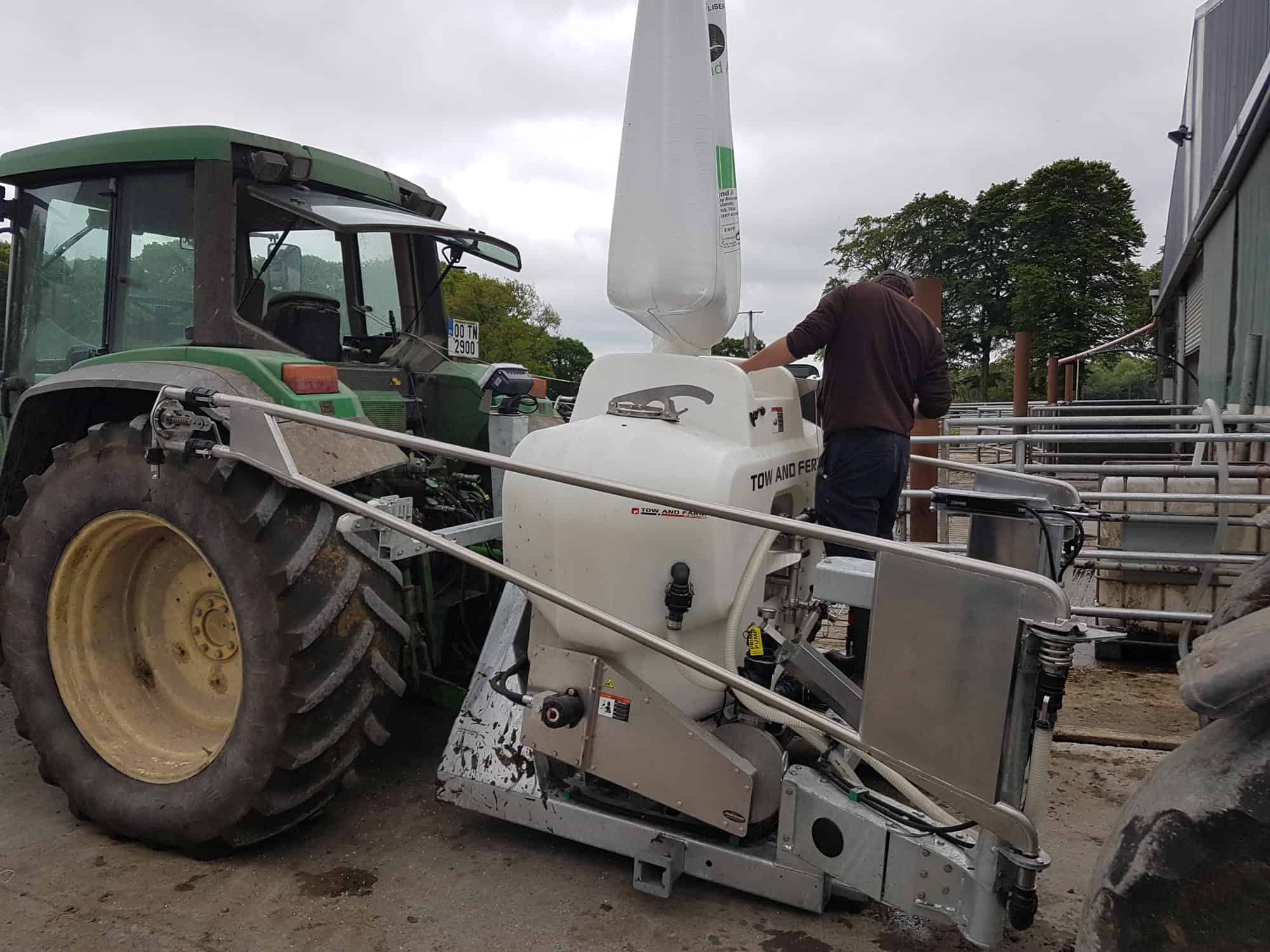

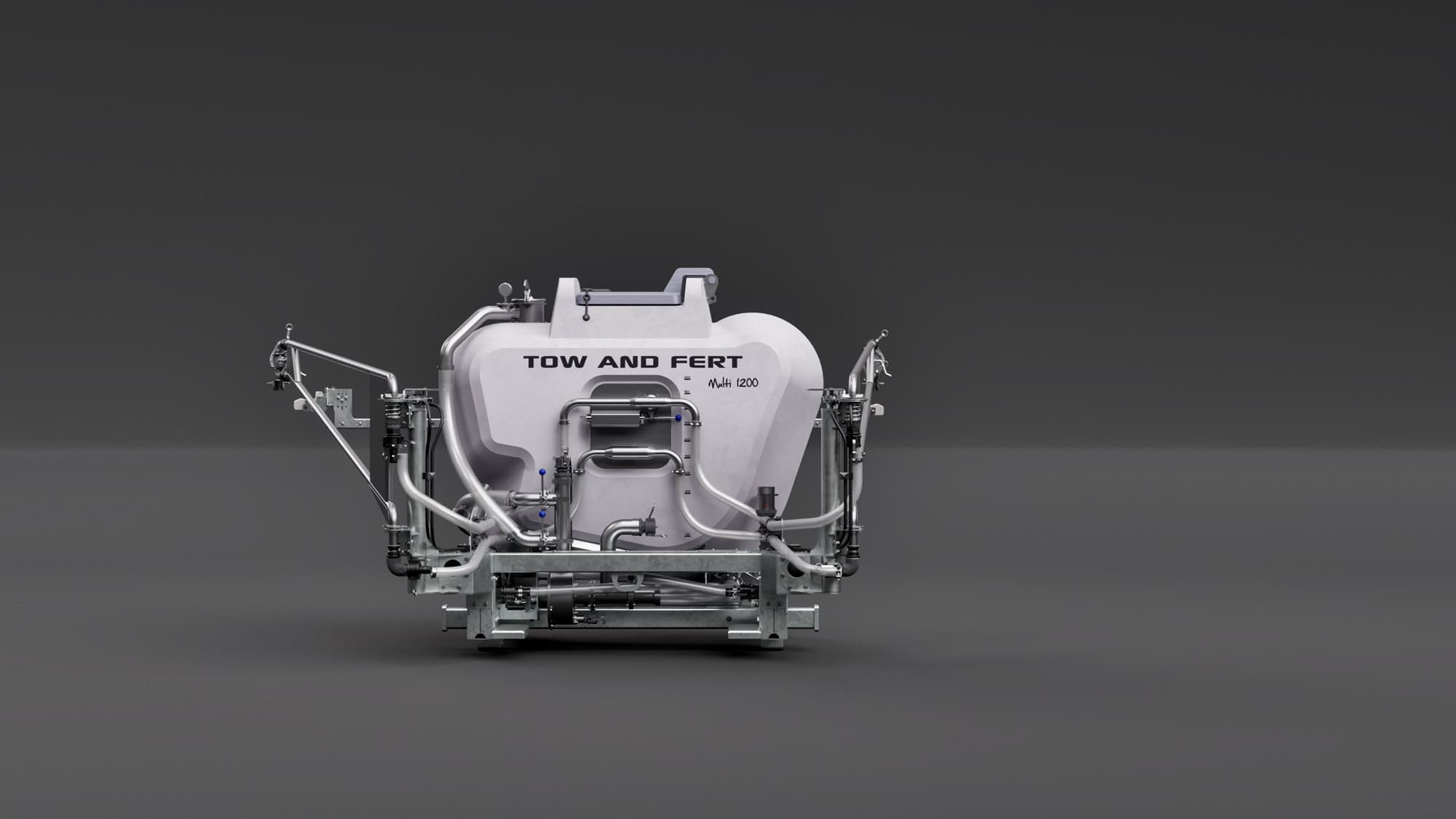

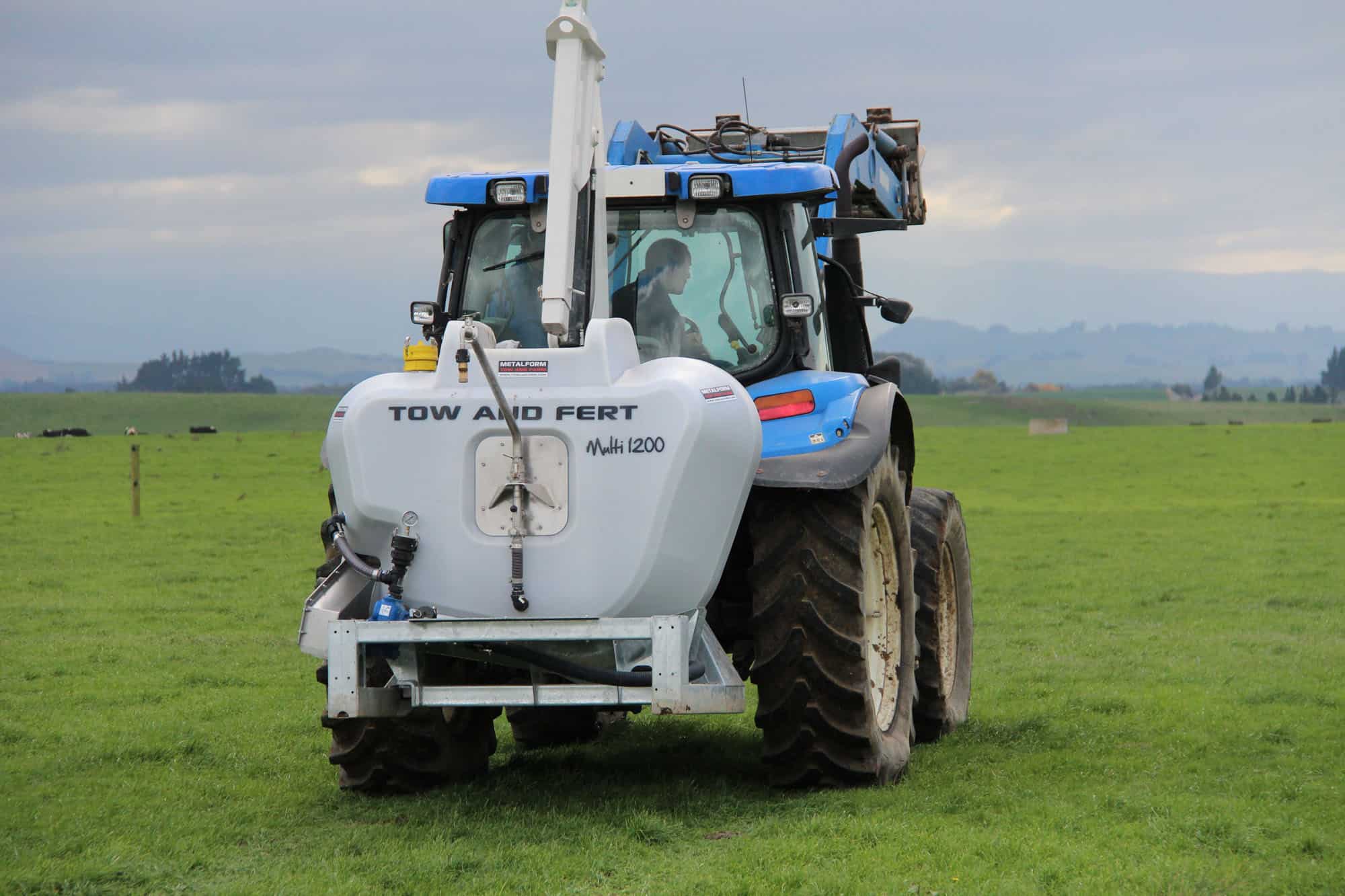

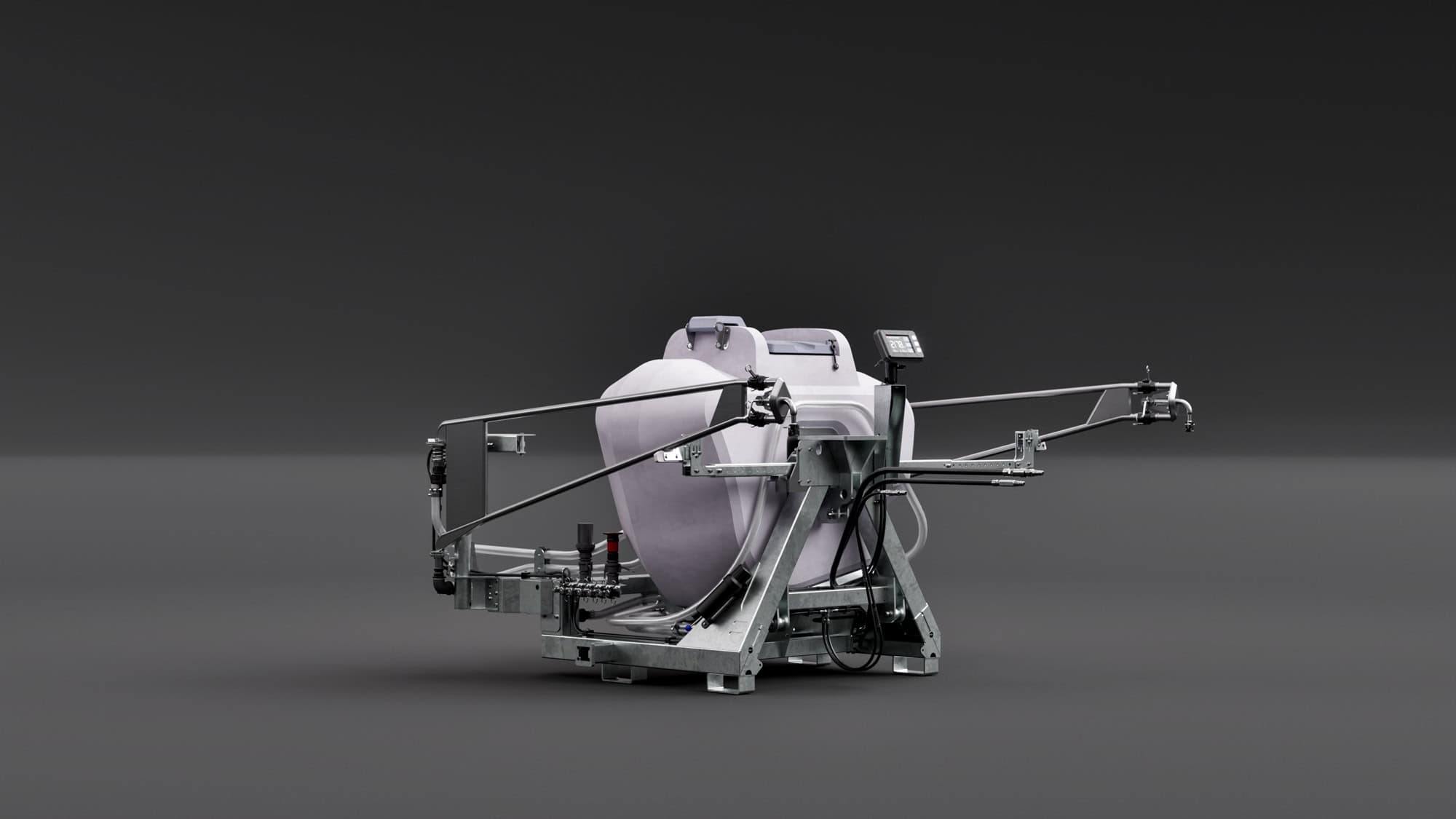

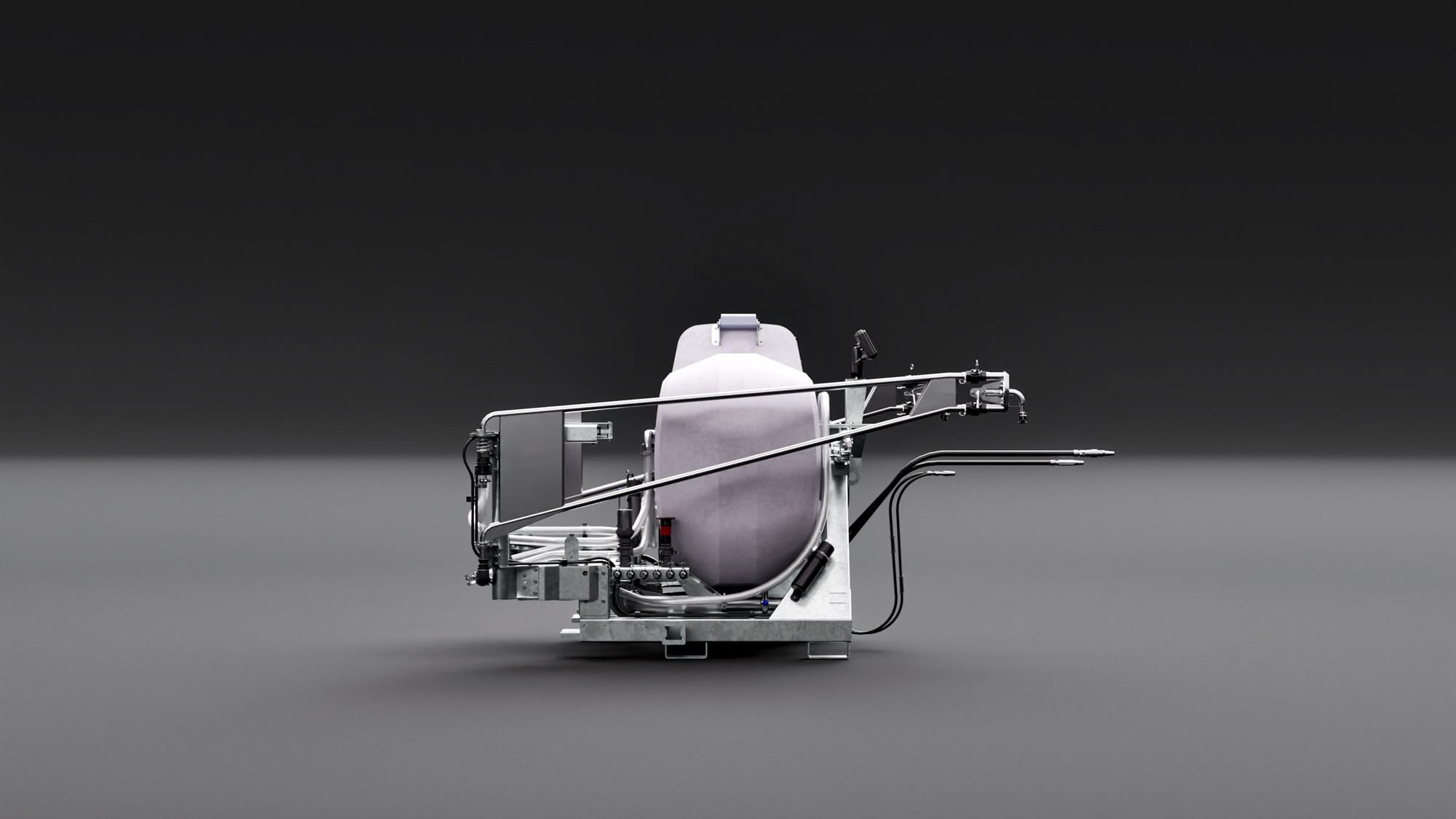

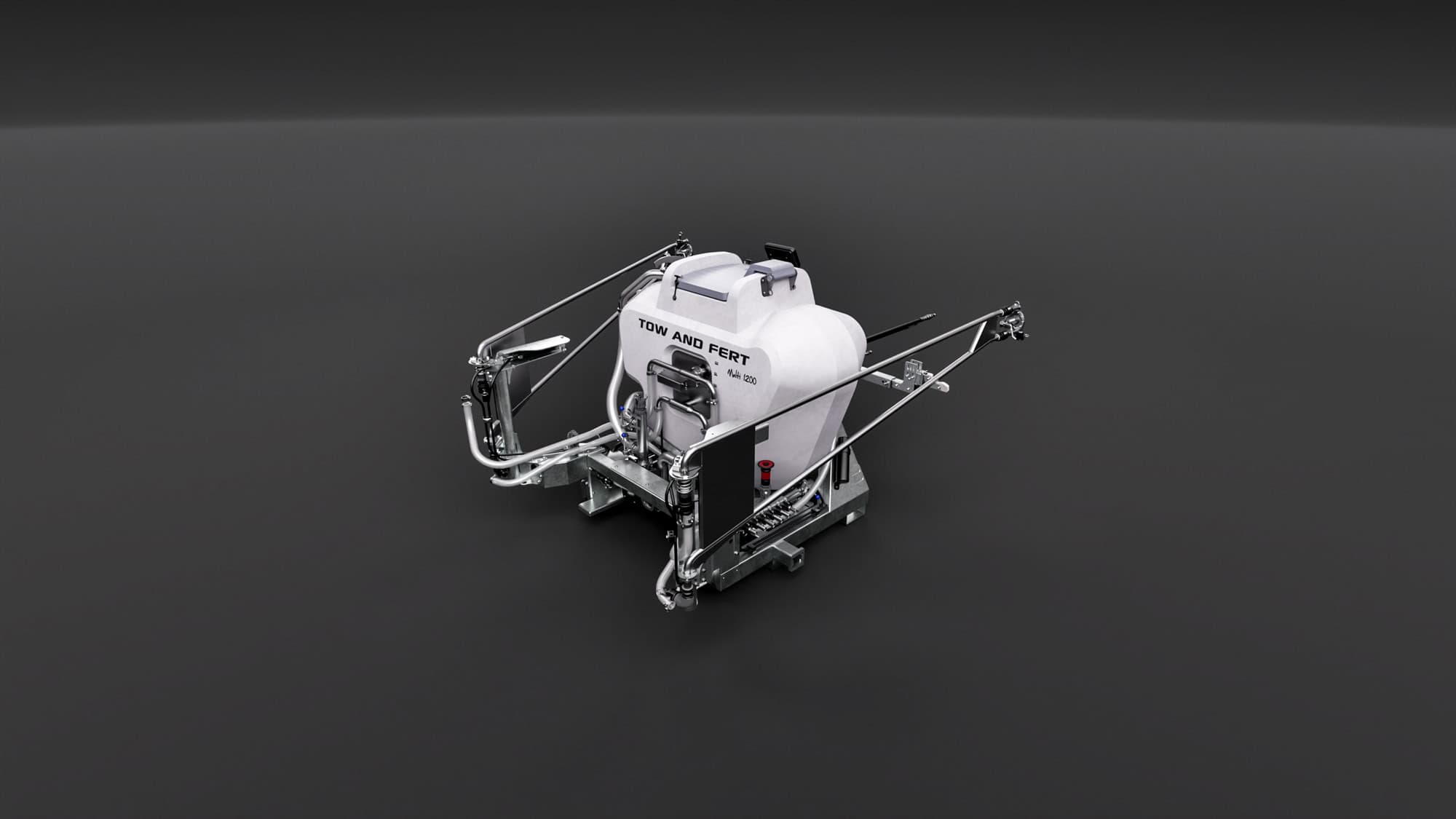

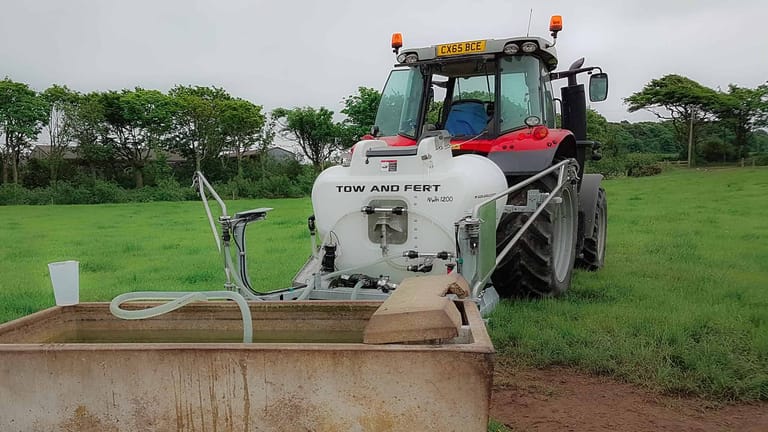

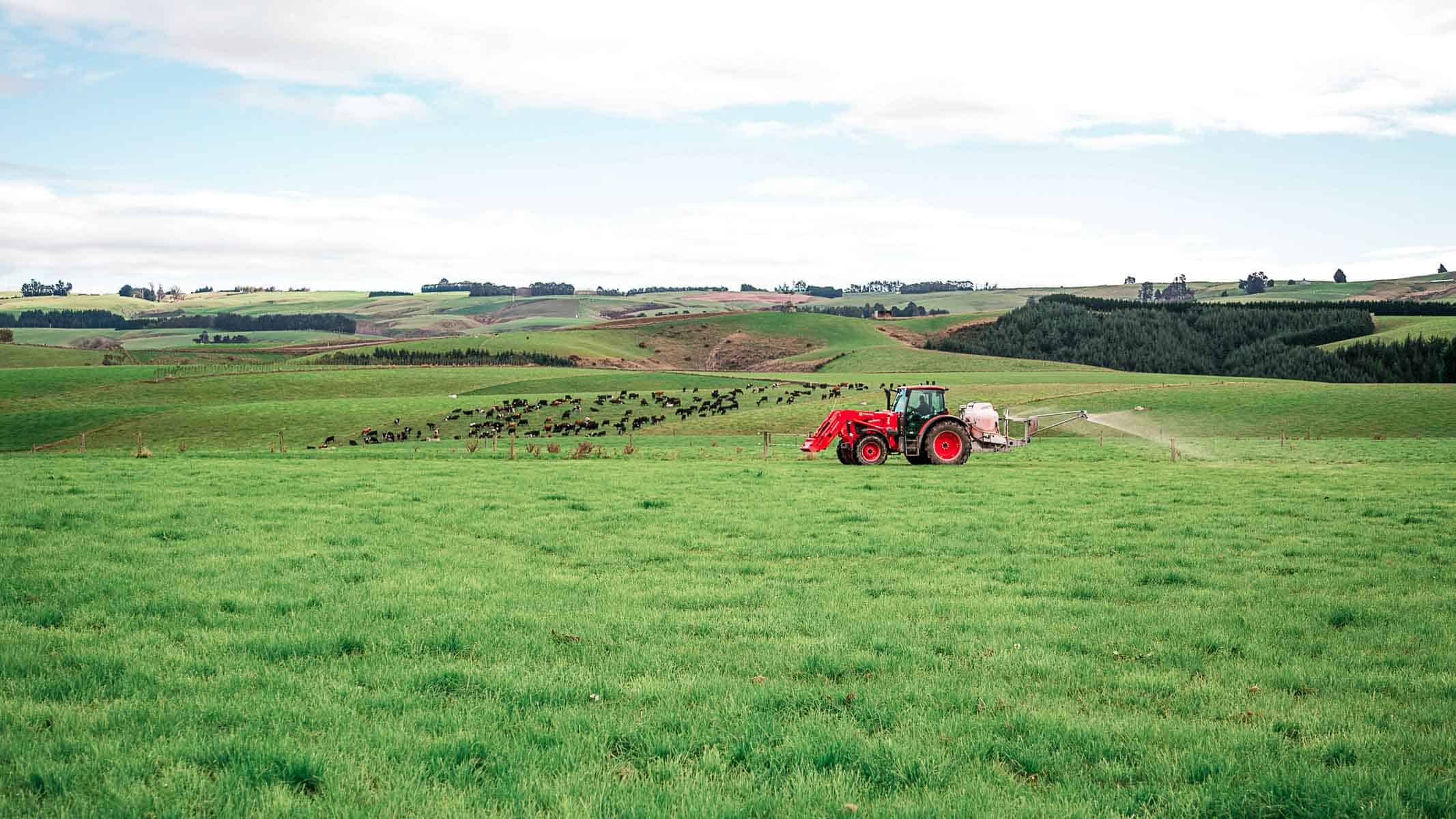

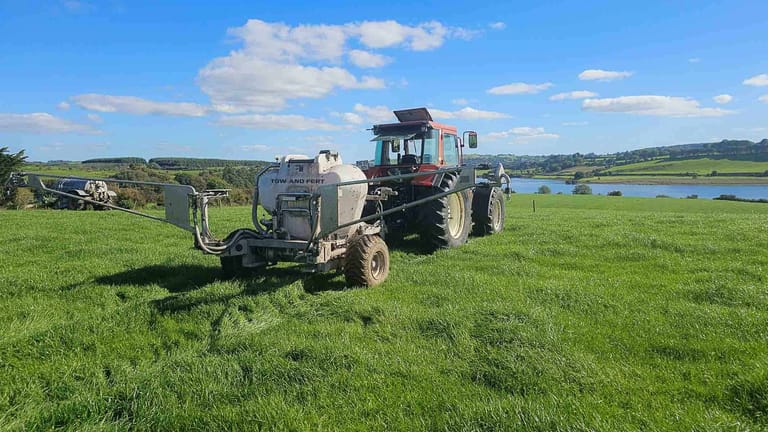

The Tow and Fert Multi 1200 attaches to the back of your tractor and has up to a 18 metre spread width. The three point linkage sprayer is ideal for farms where manoeuvrability and terrain is a factor compared to the longer trailed units. With the optional crane system, you can make this a 1 tractor solution for loading and operating. A minimum of 110hp tractor is required to handle the weight, but a larger tractor will be required on hillier terrain. The Multi 1200 can self-fill by sucking in liquid from your effluent pond or a fresh water source. With a 1200 litre capacity the Tow and Fert Multi 1200 can dissolve 1⁄2 tonne of urea in cold water, or hold 1.2 tonne of dry fine particle product in suspension. The Multi 1200 features dual booms, with a spray width of up to 18 metres, so you can cover 1 hectare in just 3 minutes. Depending on the application rate, the Multi 1200 has the capacity to cover approx. 10 hectares in one load. Using tractor hydraulics, the Multi 1200 is simple and hassle-free. Fitted with a 100% Stainless Steel trash pump and a silicon carbide mechanical seal – specifically designed for this application, the Tow and Fert is built to last. All fittings are removable without tools and can be changed in the field.

Tank size
1200 L
Spray width
18 m
Area per load
10 ha
Application rate
50 – 500 litres/hectare l/ha
Attachment style
3 Point Linkage
Attachment vehicle
110hp tractor or greater
Gallery
Switch above to view Pasture setup.
Tank size
1200 L
Spray width
18 m
Area per load
10 ha
Application rate
50 – 500 litres/hectare l/ha
Attachment style
3 Point Linkage
Attachment vehicle
110hp tractor or greater
Agitation powered by
3″ Trash Pump
Pump model
Metalform Stainless 3” Centrifugal Trash Pump
Pump performance
1200 litres per minute at 0 metres lift. Max lift = 4 metres
Pump powered by
Hydraulic Motor – 33 litres/min
Dry weight
850kg
Full weight
up to 2,500kg (depending on mix)
Size
1.65m (L) x 2.00m (W) x 1.70m (H)
Specifications
Tank size
1200 L
Spray width
18 m
Area per load
10 ha
Application rate
50 – 500 litres/hectare l/ha
Attachment style
3 Point Linkage
Attachment vehicle
110hp tractor or greater
Agitation powered by
3″ Trash Pump
Pump model
Metalform Stainless 3” Centrifugal Trash Pump
Pump performance
1200 litres per minute at 0 metres lift. Max lift = 4 metres
Pump powered by
Hydraulic Motor – 33 litres/min
Dry weight
850kg
Full weight
up to 2,500kg (depending on mix)
Size
1.65m (L) x 2.00m (W) x 1.70m (H)
Optional extras
Wheel Kit
Hort/Tree Crop Kit
Stationary Mixing Station
Compost Basket
Handover Video
Handover Video: The Multi 1200
Watch this informative video with Michael Smith to learn how the Tow and Fert Multi 1200 operates. In this walk-through, Michael demonstrates how to set up, operate, and get the most from the Tow and Fert Multi 1200 sprayer — a robust 1200 L liquid and fine particle applicator with up to 18 m spray width that attaches to your tractor for efficient coverage. You’ll learn key features, controls, and practical tips to maximise performance and safety.
