PTO or Hydraulic Agitation
Tow and Fert Multi 2800

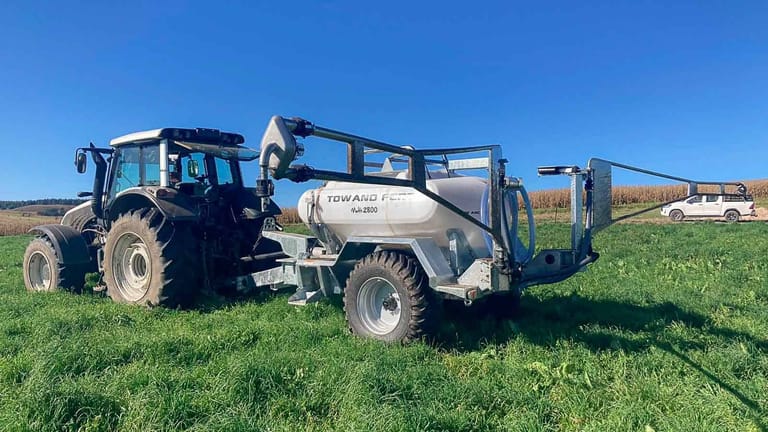

The Multi 2800 is designed to be towed by a tractor of a minimum 110hp. The best solution for those rolling and mid sized farms, the Multi 2800 is a versatile machine that will go places others won’t. The Multi 2800 can mix 1 tone of urea in 2000 litres of water but if you are not a urea user, then the Multi 2800 is a perfect mid sized machine for all other products including fish hydrolysate, biological stimulants and seeds. It uses the PTO at 540rpm for mixing & agitation and hydraulics to run the specifically designed 3” trash pump found on all other Tow and Fert models for spraying. With the patented agitation technology in the tank, you can simply empty 3 tonne of fine particle fertiliser directly into the water without any pre-mixing or messy work. Combined with the optional crane, you can load 3 tones of fertiliser product into the Tow and Fert in just 15 minutes. With up to a 22 metre spread, the Multi 2800 can cover 1 hectare in just 3 minutes at 12 km/hr (8 mph). With a capacity of up to 20 hectares per load, this Tow and Fert makes light work of a large job.

Tank size
2800 L
Spray width
22 m
Area per load
20 ha
Application rate
50 – 500 litres/hectare l/ha
Attachment style
Trailed
Attachment vehicle
110hp tractor or greater
Gallery
Tank size
2800 L
Spray width
22 m
Area per load
20 ha
Application rate
50 – 500 litres/hectare l/ha
Attachment style
Trailed
Attachment vehicle
110hp tractor or greater
Agitation powered by
PTO @ 540 RPM or Hydraulic Motor – 55 litres/min
Pump model
Metalform Stainless 3” Centrifugal Trash Pump
Pump performance
1200 litres per minute at 0 metres lift. Max lift = 4 metres
Pump powered by
Hydraulic Motor – 33 litres/min
Dry weight
2,100kg
Full weight
up to 6,500kg (depending on mix SG)
Size
4.90m (L) x 2.30m (W) x 2.50m (H)
Specifications
Tank size
2800 L
Spray width
22 m
Area per load
20 ha
Application rate
50 – 500 litres/hectare l/ha
Attachment style
Trailed
Attachment vehicle
110hp tractor or greater
Agitation powered by
PTO @ 540 RPM or Hydraulic Motor – 55 litres/min
Pump model
Metalform Stainless 3” Centrifugal Trash Pump
Pump performance
1200 litres per minute at 0 metres lift. Max lift = 4 metres
Pump powered by
Hydraulic Motor – 33 litres/min
Dry weight
2,100kg
Full weight
up to 6,500kg (depending on mix SG)
Size
4.90m (L) x 2.30m (W) x 2.50m (H)
Optional extras
In-cab Rate Assist
Crane Kit
Section Control
Hort/Tree Crop Kit
Tow Hitch
Truck Mount
Stationary Mixing Station
Compost Basket
Description
Not too big, not too small.
The Multi 2800 is designed to be towed by a tractor of a minimum 110hp. The best solution for those rolling and mid sized farms, the Multi 2800 is a versatile machine that will go places others won’t.
The Multi 2800 can mix 1 tonne of urea in 2000 litres of water. If you are not a urea user, then the Multi 2800 is a perfect mid sized machine for all other products including fish hydrolyslate, biological stimulants and seeds.

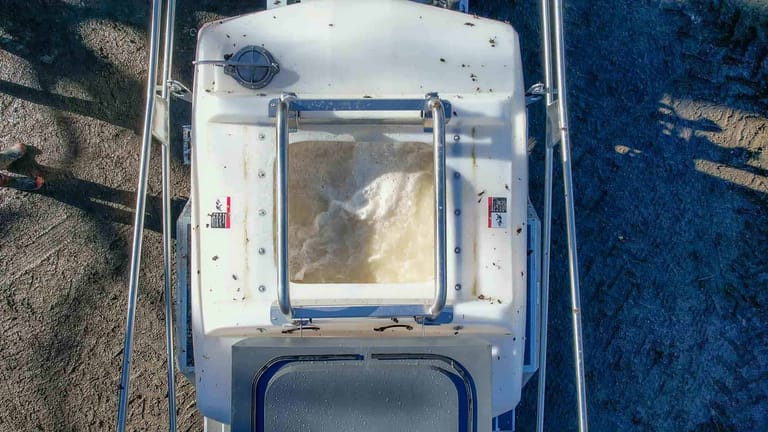

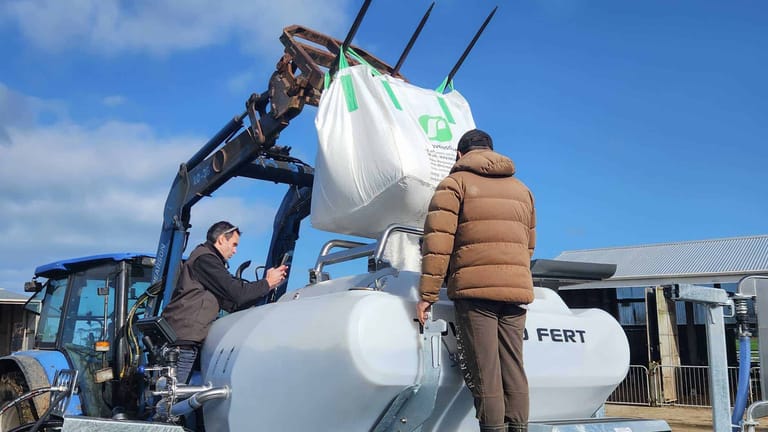

It uses the PTO at 540rpm for mixing & agitation and hydraulics to run the specifically designed 3” trash pump found on all other Tow and Fert models for spraying. With the patented agitation technology in the tank, you can simply empty 3 tonne of fine particle fertiliser directly into the water without any pre-mixing or messy work. Combined with the optional crane, you can load 3 tonnes of fertiliser product into the Tow and Fert in just 15 minutes.

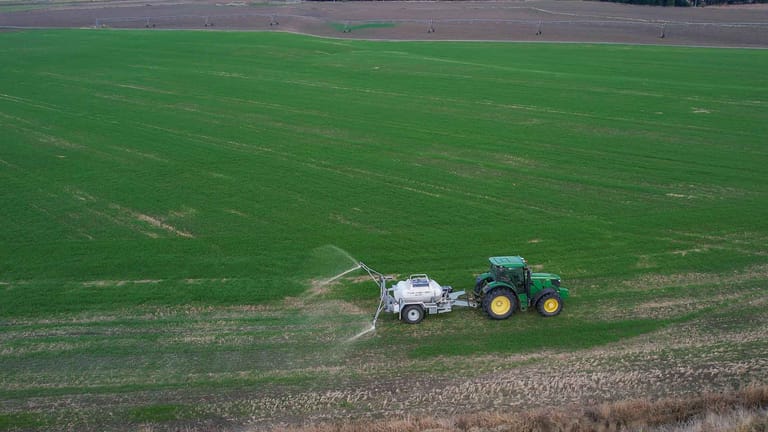

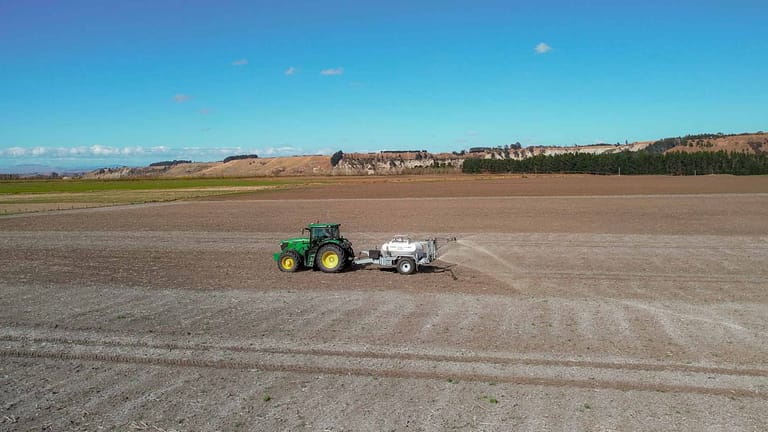

With up to a 22 metre spread, the Multi 2800 can cover 1 hectare in just 3 minutes at 12 km/hr (8 mph). With a capacity of up to 20 hectares per load, this Tow and Fert makes light work of a large job.
