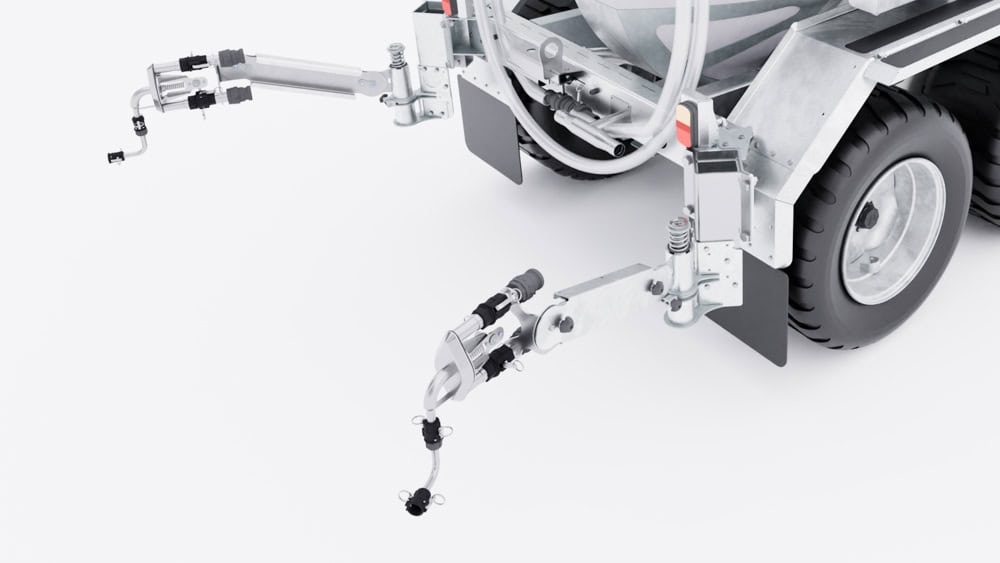

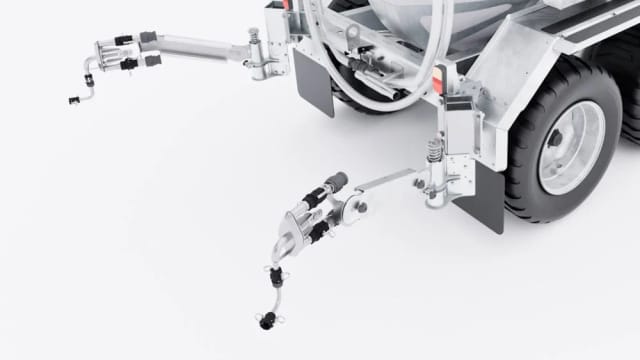

Horticulture Booms
Horticulture booms spray off to the side to target root zones, and foliage of row spaced crops.
Boom type
Suspend 4000kg of Lime Flour in only 2000kg of water - apply it all without blocking.

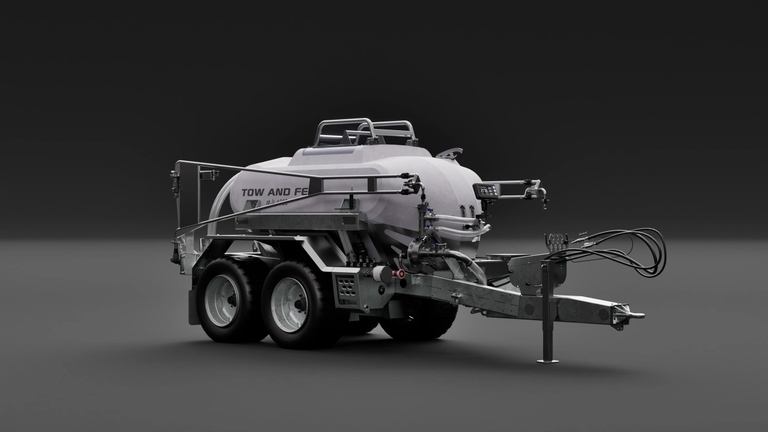

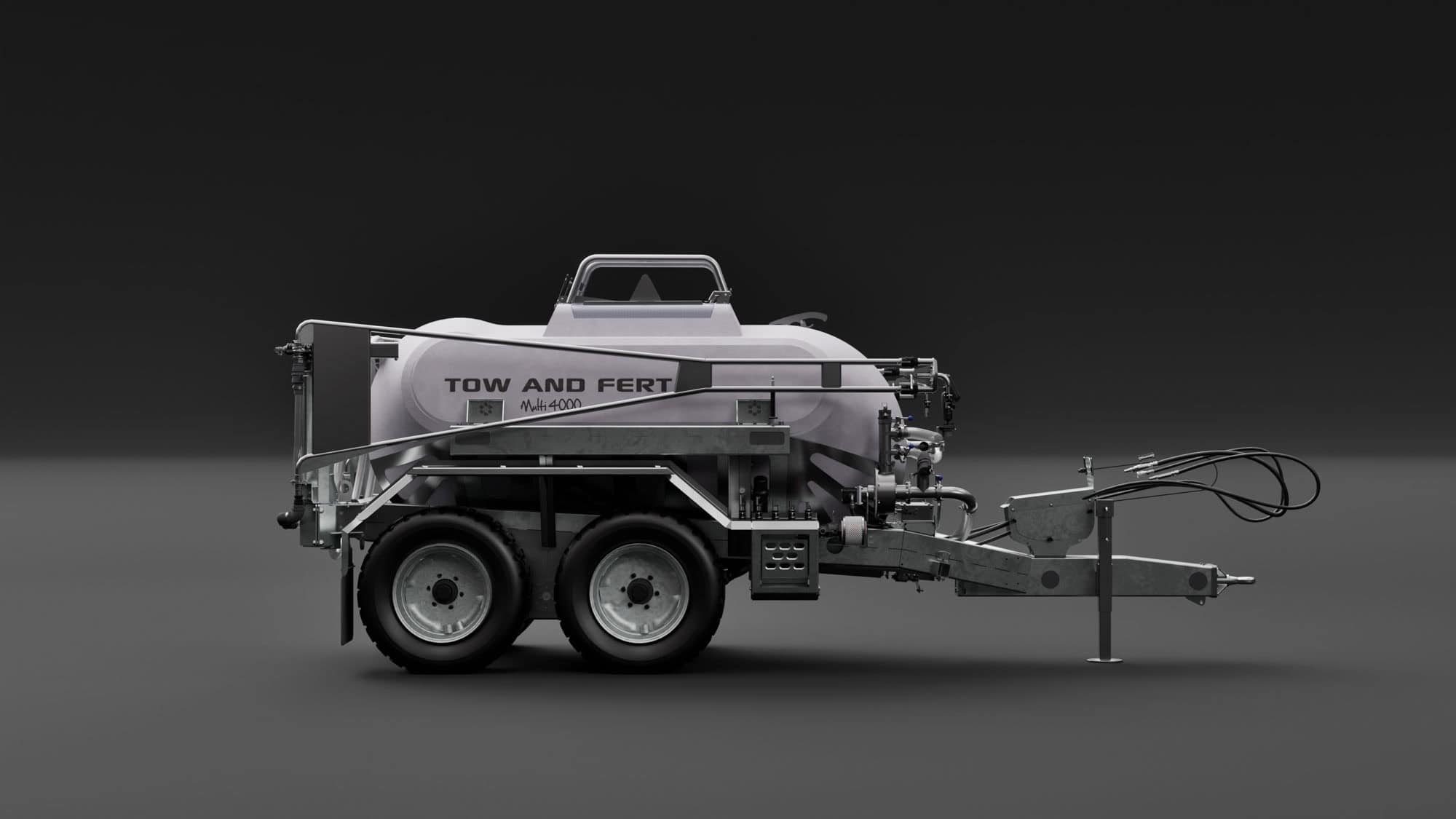

Tow and Fert Multi 4000

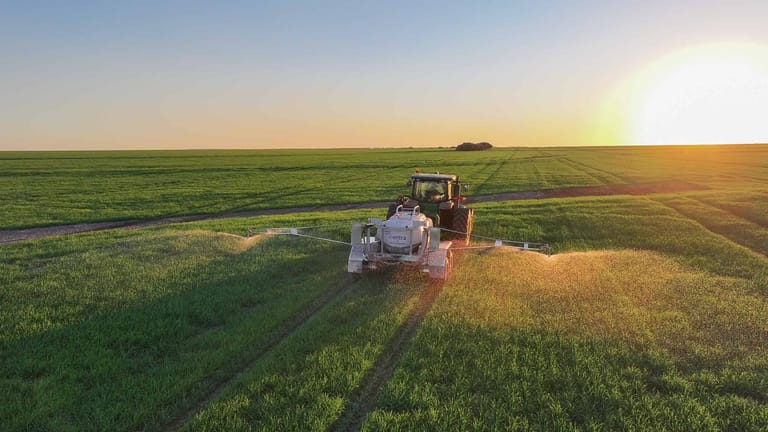

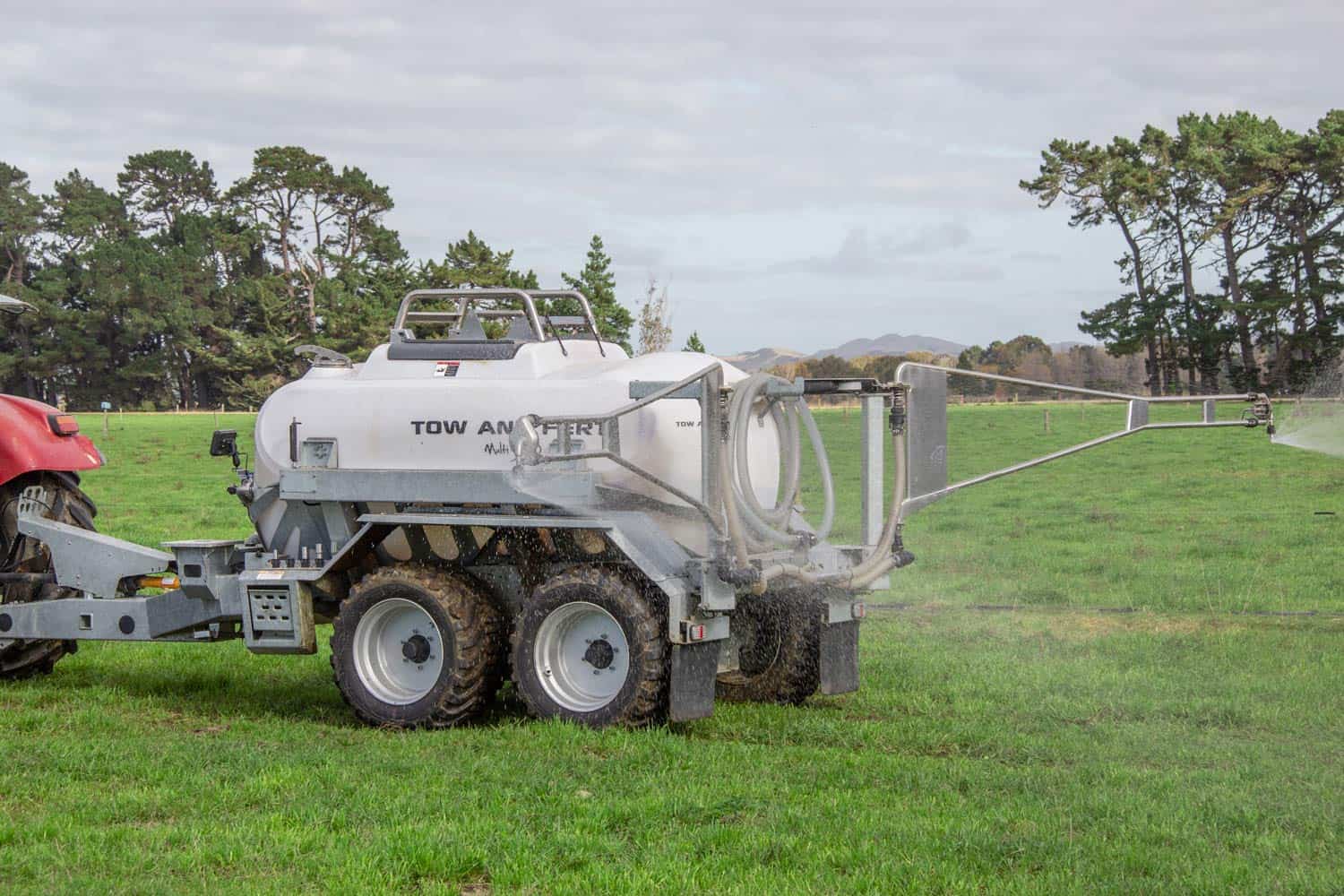

The Tow and Fert Multi 4000 is built for tractors 120 hp and above, with mixing powered by either 1000 rpm PTO or an optional hydraulic motor. Its hydraulic-driven 3” Metalform stainless steel trash pump and patented tank agitation let you tip 1-tonne bags of fine particle fertiliser straight into the water — no pre-mixing required. Add the optional crane and you can load 4 tonnes in around 15 minutes. For urea users, the Multi 4000 dissolves up to 1.5 tonnes of standard granular urea into 3000 L of cold water. With a spread width up to 22 m, it can cover 1 ha in about 3 minutes at 12 km/h, delivering up to 40 hectares per load. The Multi 4000 makes big jobs fast, simple, and highly efficient.
Tank size
4000 L
Spray width
24 m
Area per load
40 ha
Application rate
50-500 l/ha
Attachment style
Trailed
Attachment vehicle
120hp tractor or greater
Gallery
Switch above to view Pasture setup.
Boom type
Benefits
Why operators choose this model
4000L Capacity
Tackle jobs of up to 40ha per load.
Patented Boom Circulation
Apply the toughest of suspension products with peace of mind that your nozzles and booms will remain blockage free.
3 Inch Metalform Stainless Trash Pump
The Multi 4000 features our propriety 3 inch stainless steel trash pump with a work hardening impeller. Where other pumps fail, the Metalform Trash Pump delivers!
Another Feature I'll remember
Nozzles, hot dip galv & Stainless construction, on board agitation etc, low pressure system blah blah
Tank size
4000 L
Spray width
24 m
Area per load
40 ha
Application rate
50-500 l/ha
Attachment style
Trailed
Attachment vehicle
120hp tractor or greater
Agitation powered by
PTO @ 1000 RPM or Hydraulic Option
Pump model
Metalform Stainless 3” Centrifugal Trash Pump
Pump performance

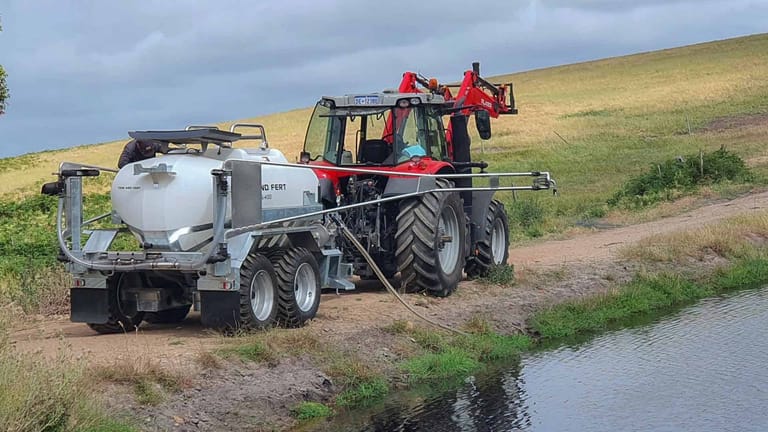

1200 litres per minute at 0 metres lift. Max lift = 4 metres
Pump powered by
Hydraulics – 33 litres/min
Dry weight
3,000kg (without crane)
Full weight
up to 9,500kg (depending on mix SG)
Size
5.90m (L) x 2.30m (W) x 2.50m (H)
Specifications
Tank size
4000 L
Spray width
24 m
Area per load
40 ha
Application rate
50-500 l/ha
Attachment style
Trailed
Attachment vehicle
120hp tractor or greater
Agitation powered by
PTO @ 1000 RPM or Hydraulic Option
Pump model
Metalform Stainless 3” Centrifugal Trash Pump
Pump performance
1200 litres per minute at 0 metres lift. Max lift = 4 metres
Pump powered by
Hydraulics – 33 litres/min
Dry weight
3,000kg (without crane)
Full weight
up to 9,500kg (depending on mix SG)
Size
5.90m (L) x 2.30m (W) x 2.50m (H)
Optional extras
Section Control
Spray with left, right or both nozzles. Allowing half spread width.

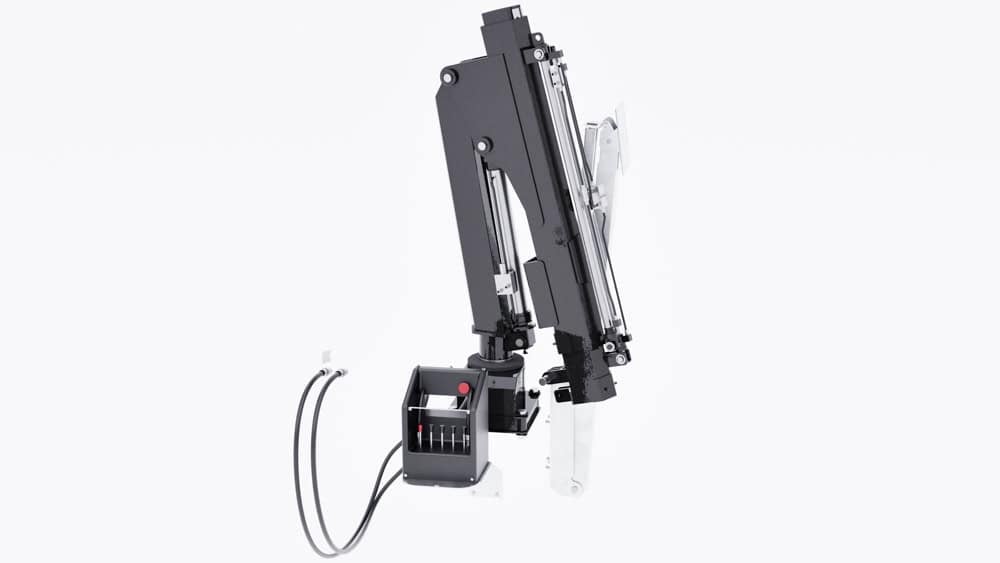

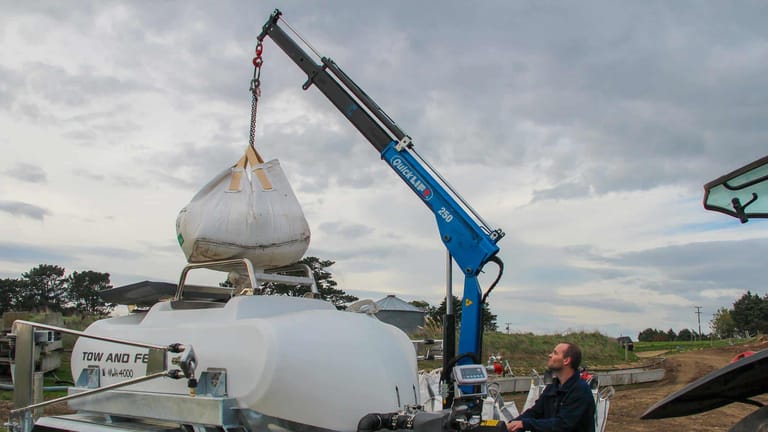

Crane
A 995kg Hiab for lifting fertiliser bags with ease and decreasing loading times.

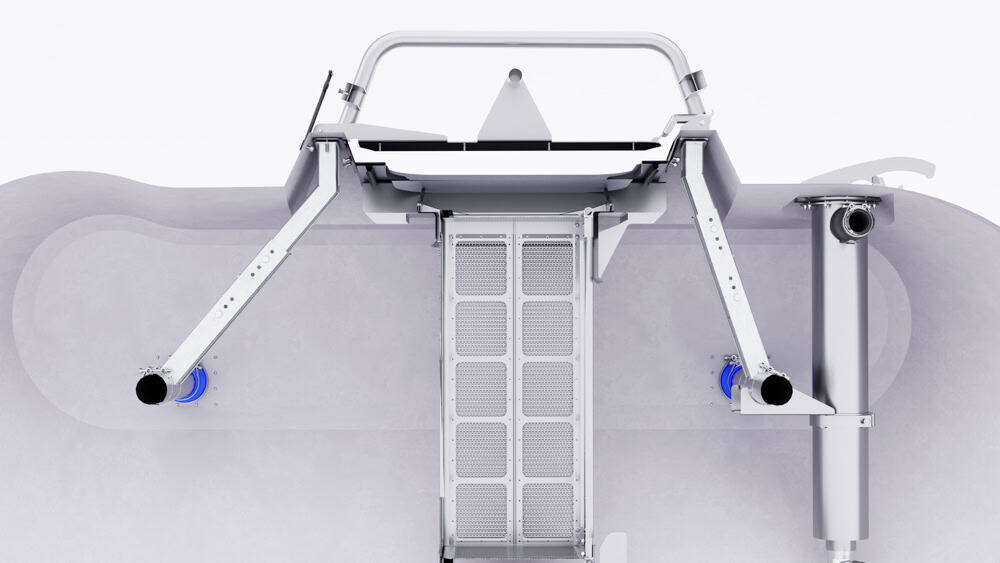

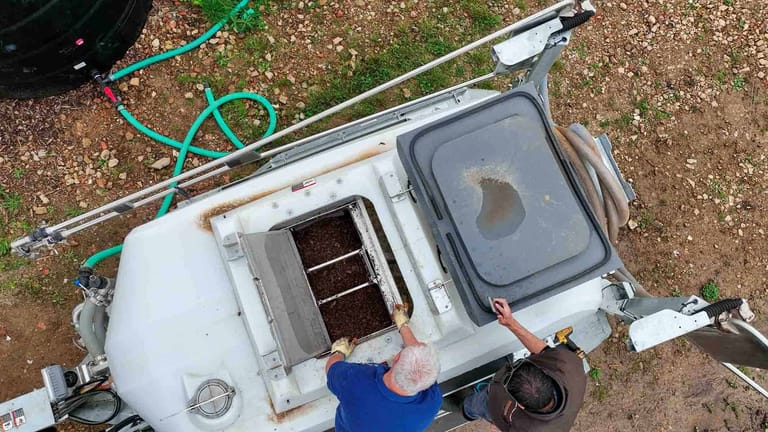

Compost Basket
A drop-in solution for creating compost extracts.

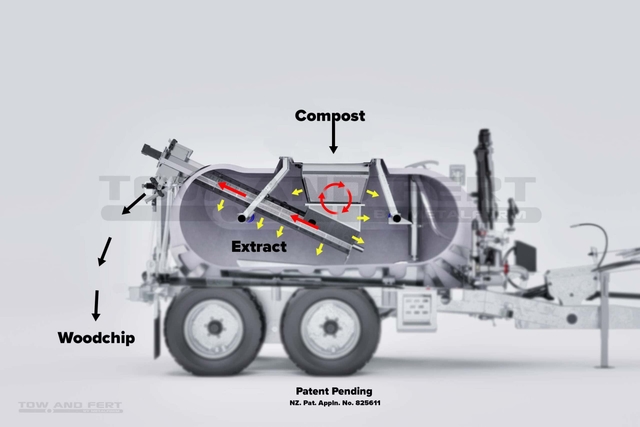

Compost Auger
Create compost extracts in the tank quickly and effectively while an auger removes the waste.

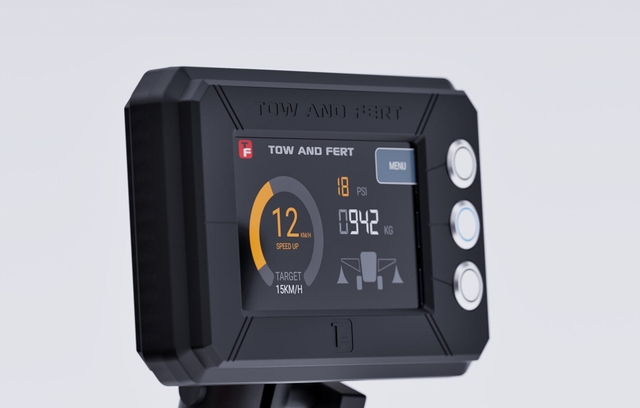

In Cab Rate Assist
An in-cab companion to ensure even application.

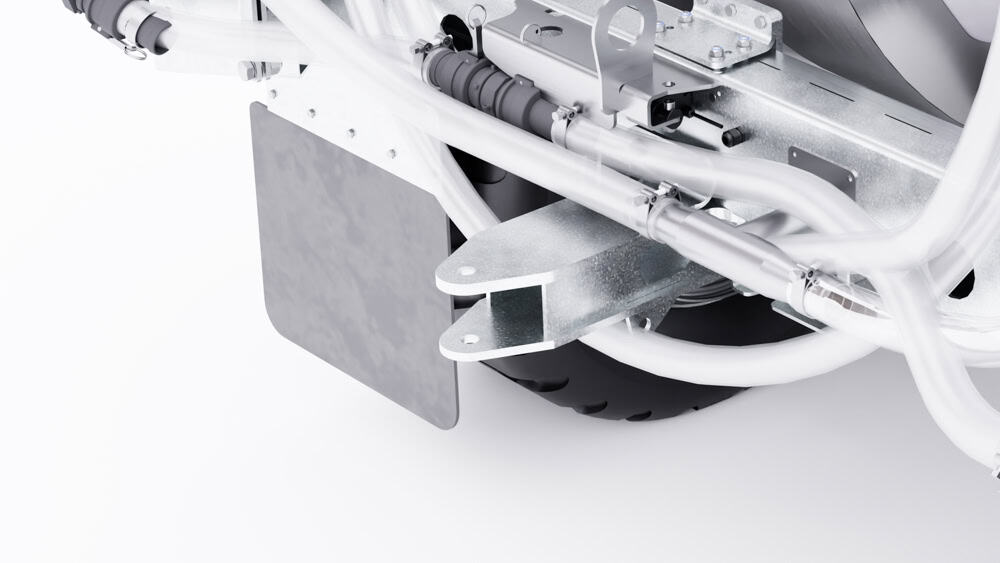

Tow Hitch
Ideal for contractors & Towing an A-Frame
Description
The Tow and Fert Multi 4000 is designed to be towed by a tractor of a minimum of 120hp.
The Multi 4000 mixing and agitation is powered by either the PTO at 1000rpm or the option powering this by a hydraulic motor. The 3” Metalform stainless steel trash pump found on the Multi 4000 and all other Tow and Fert models is powered by hydraulics.
With the patented agitation technology in the tank, you can simply empty 1-tonne bags of fine particle fertiliser directly into the water without any pre-mixing or messy work. Combined with the optional crane, you can load 4 tonnes of fertiliser product into the Tow and Fert Multi 4000 in just 15 minutes.
If you are a urea user, then this machine can handle up to 1.5 tonne of normal granular urea and dissolve it in 3000l of cold water.

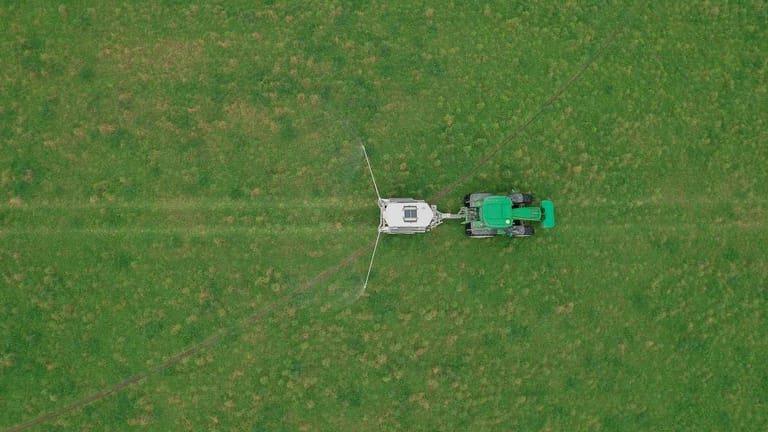

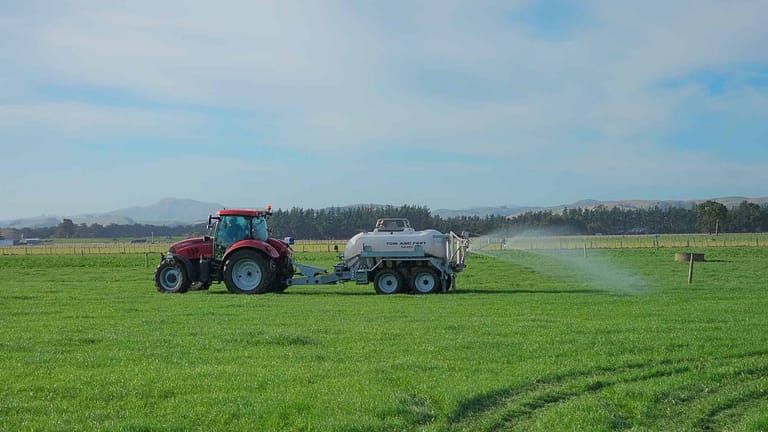

With up to a 22 metre spread, the Multi 4000 can cover 1 hectare in just 3 minutes at 12 km/hr (8 mph). With a capacity of up to 40 hectares per load, this Tow and Fert makes light work of a large job.
