External Suction Kit
On board suction kit for filling from a tank, trough, dam, IBC or stream
Boom type
The perfect solution for smaller farms, and those needing a second machine.

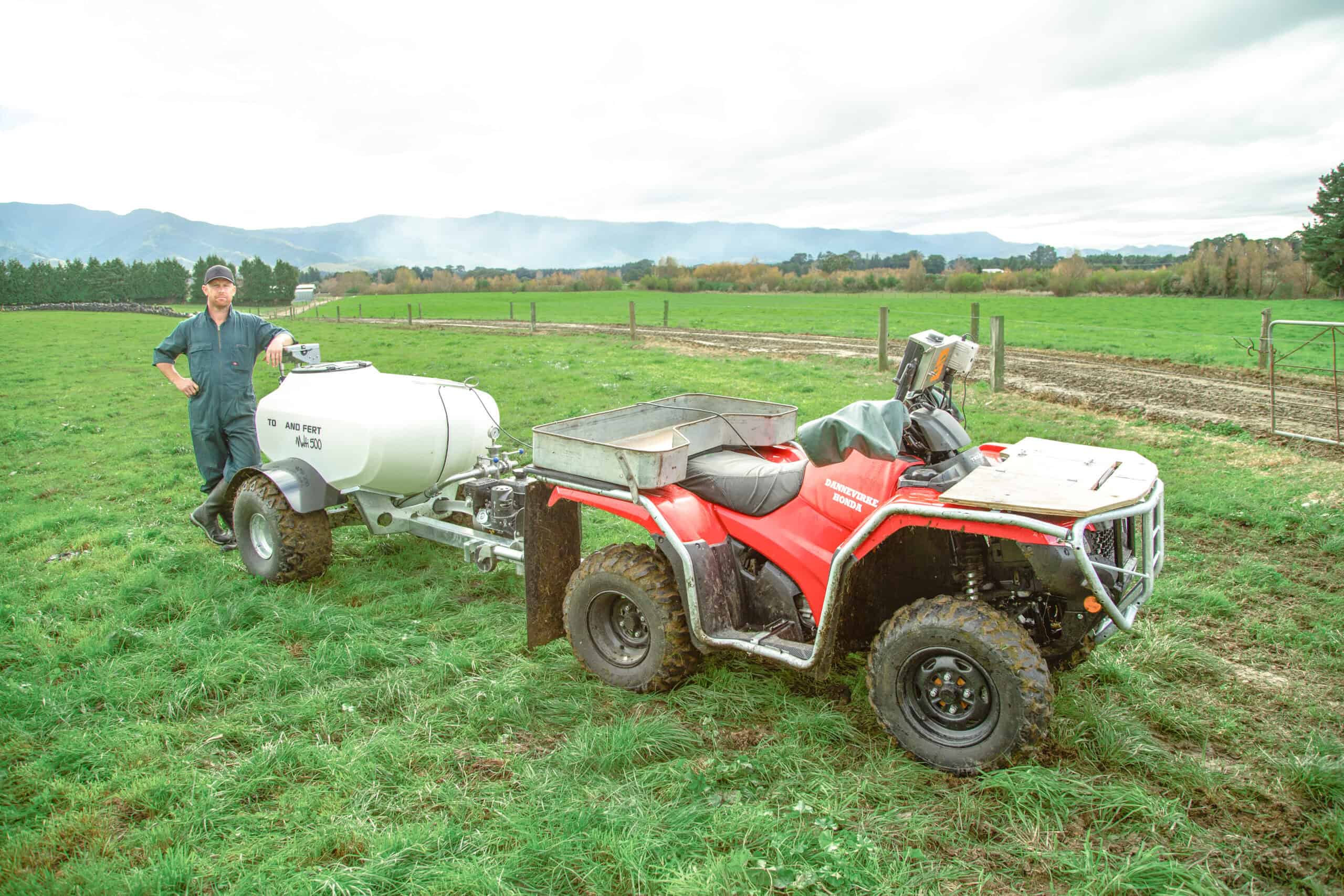

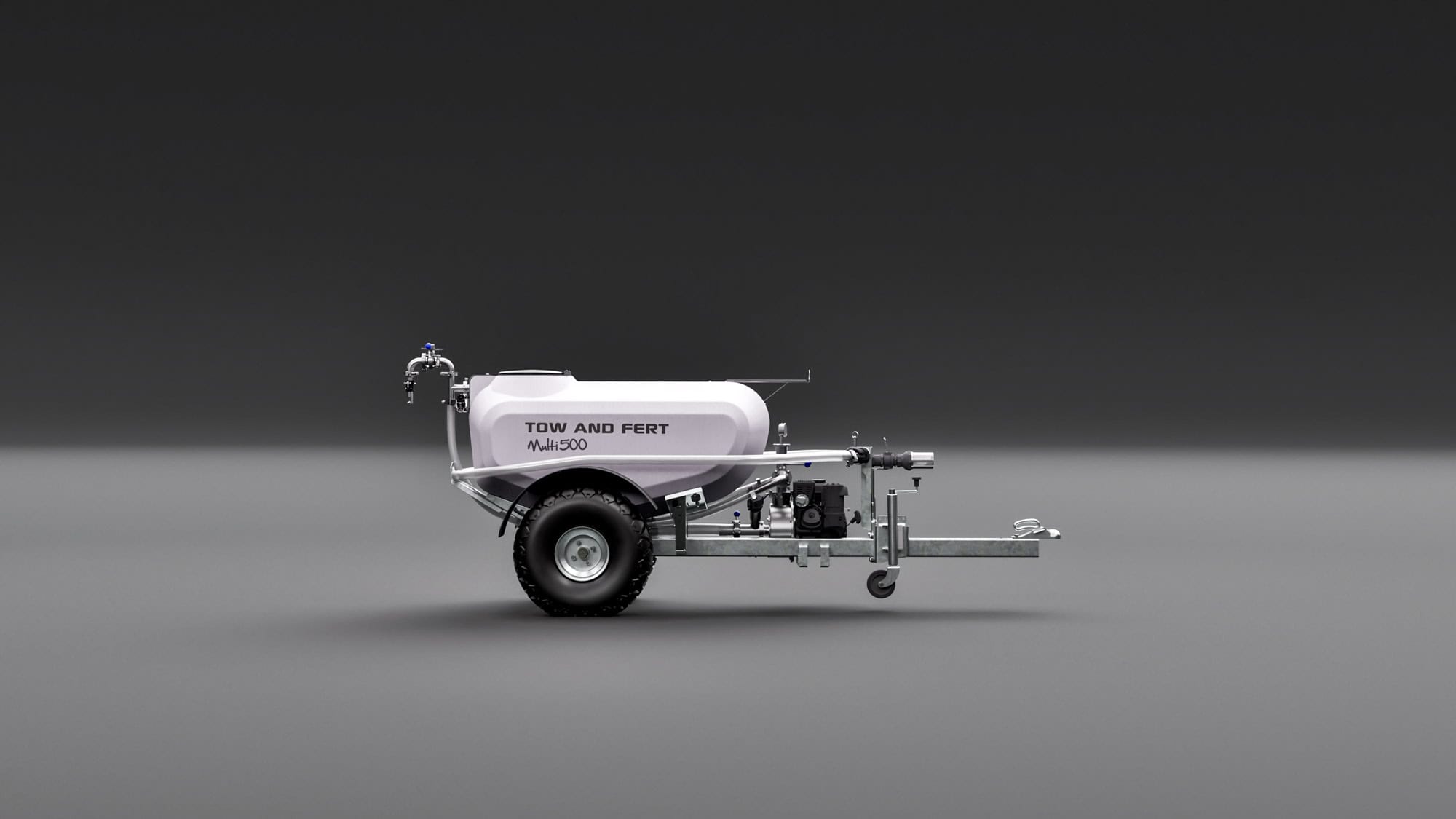

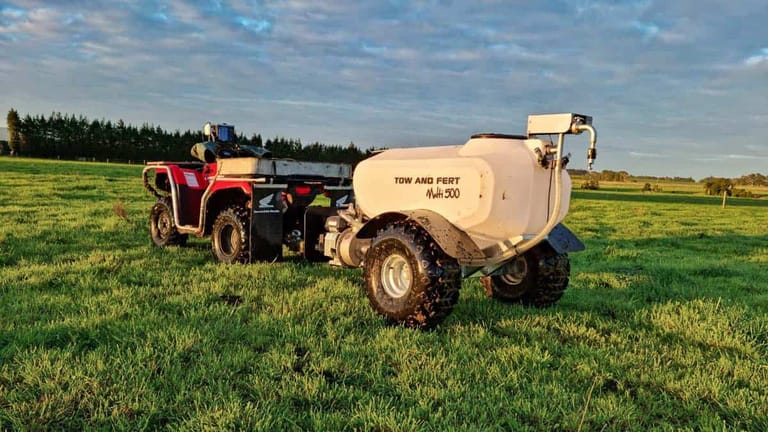

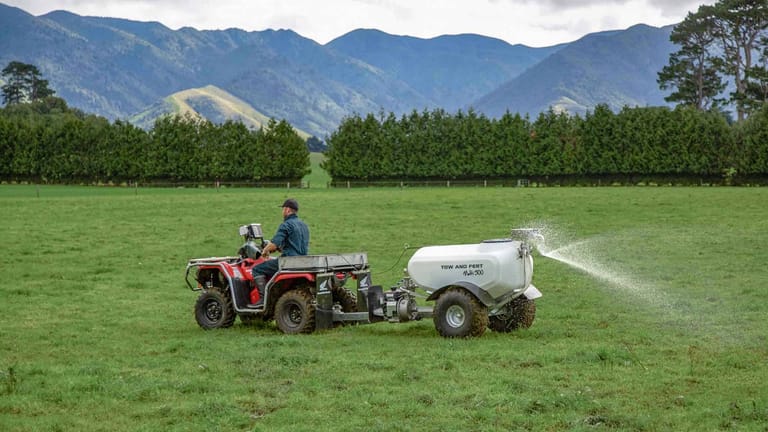

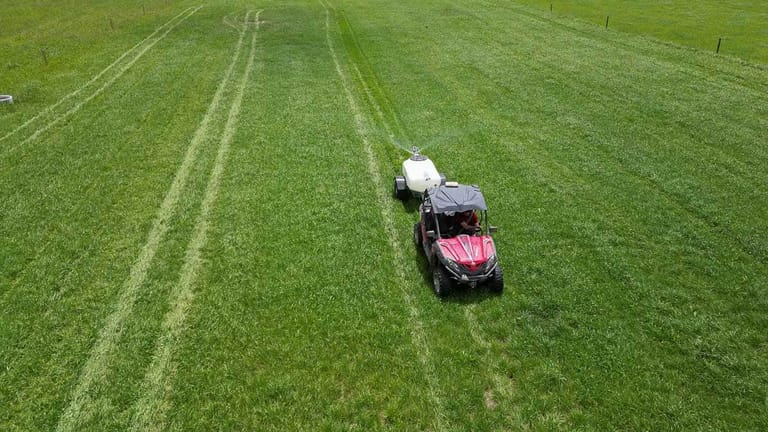

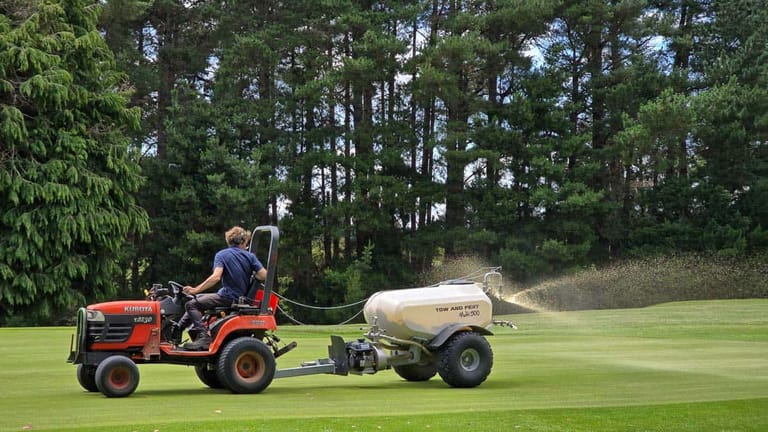

Tow and Fert Multi 500

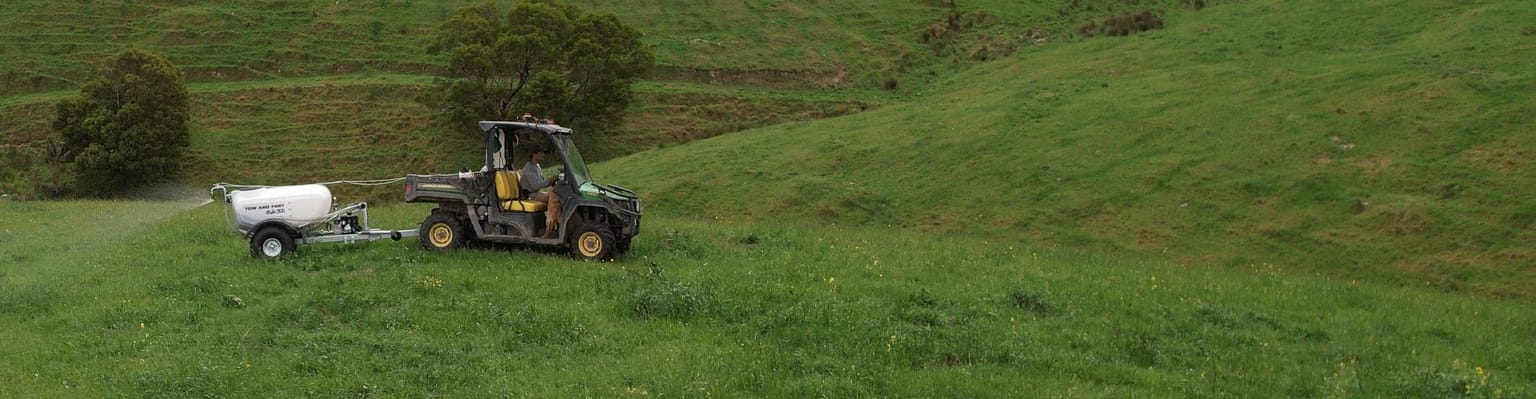

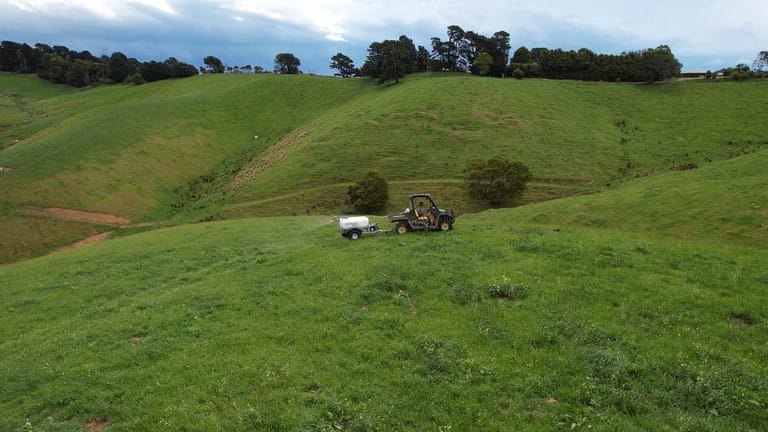

The Tow and Fert Multi 500 is a completely stand alone machine. It has been developed to be towed behind a large ATV or side-by-side, to be easy to use and for farmers wanting to get started on the Tow and Fert Fertiliser System.
Tank size
500 L
Spray width
8 m
Area per load
4 ha
Application rate
50 – 500 litres/hectare l/ha
Attachment style
Trailed
Attachment vehicle
ATV or side-by-side or Ute

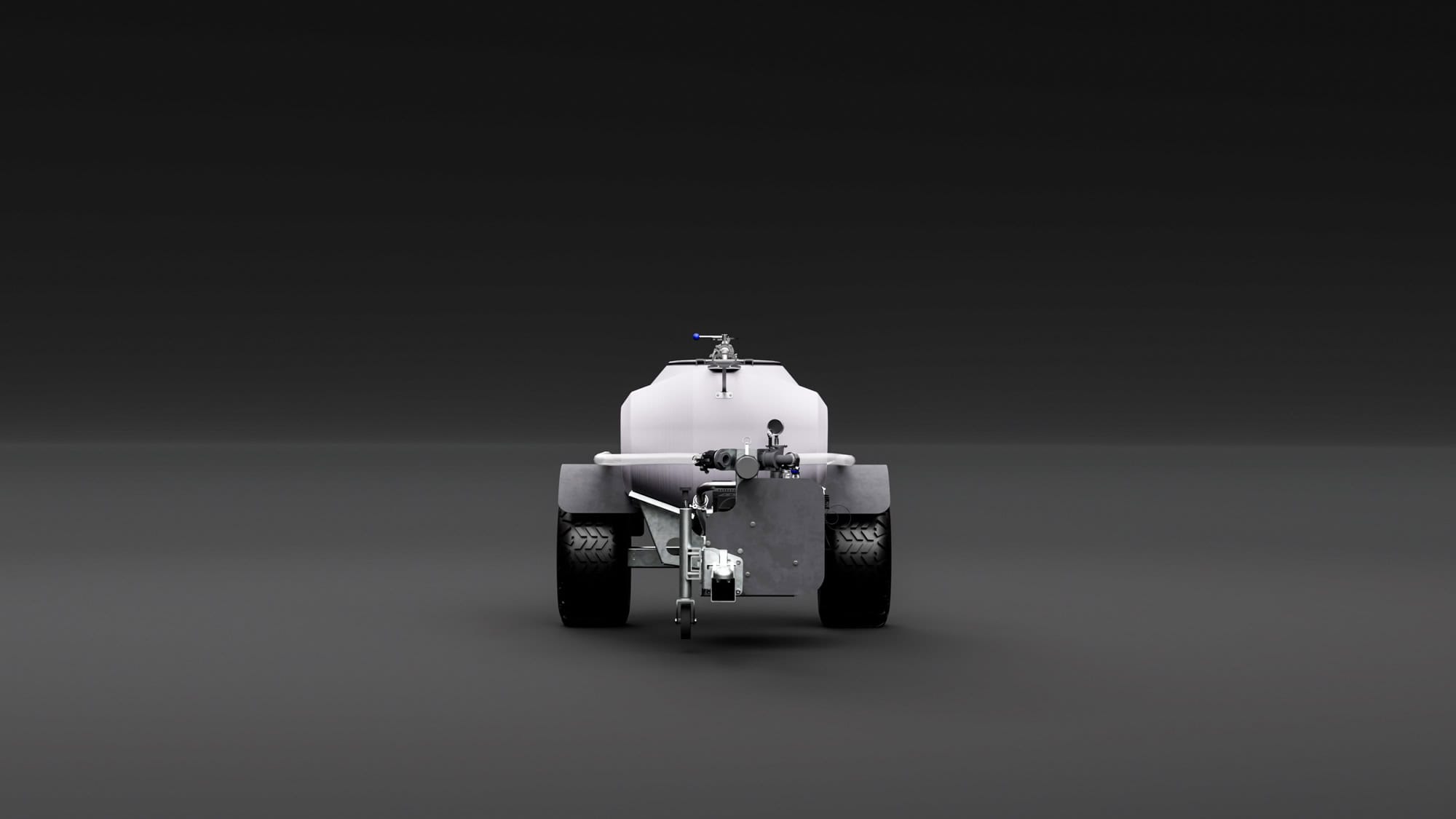

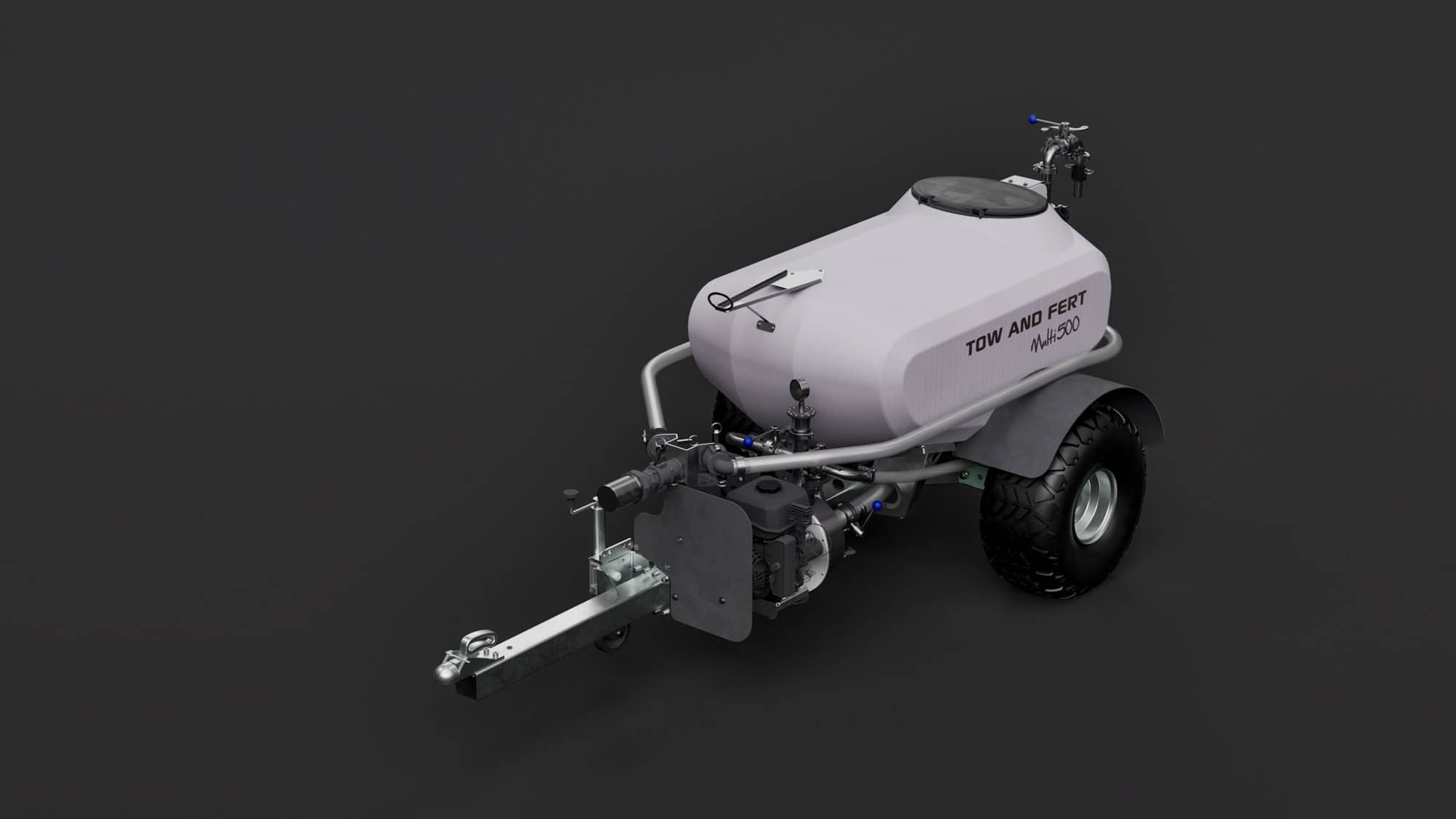

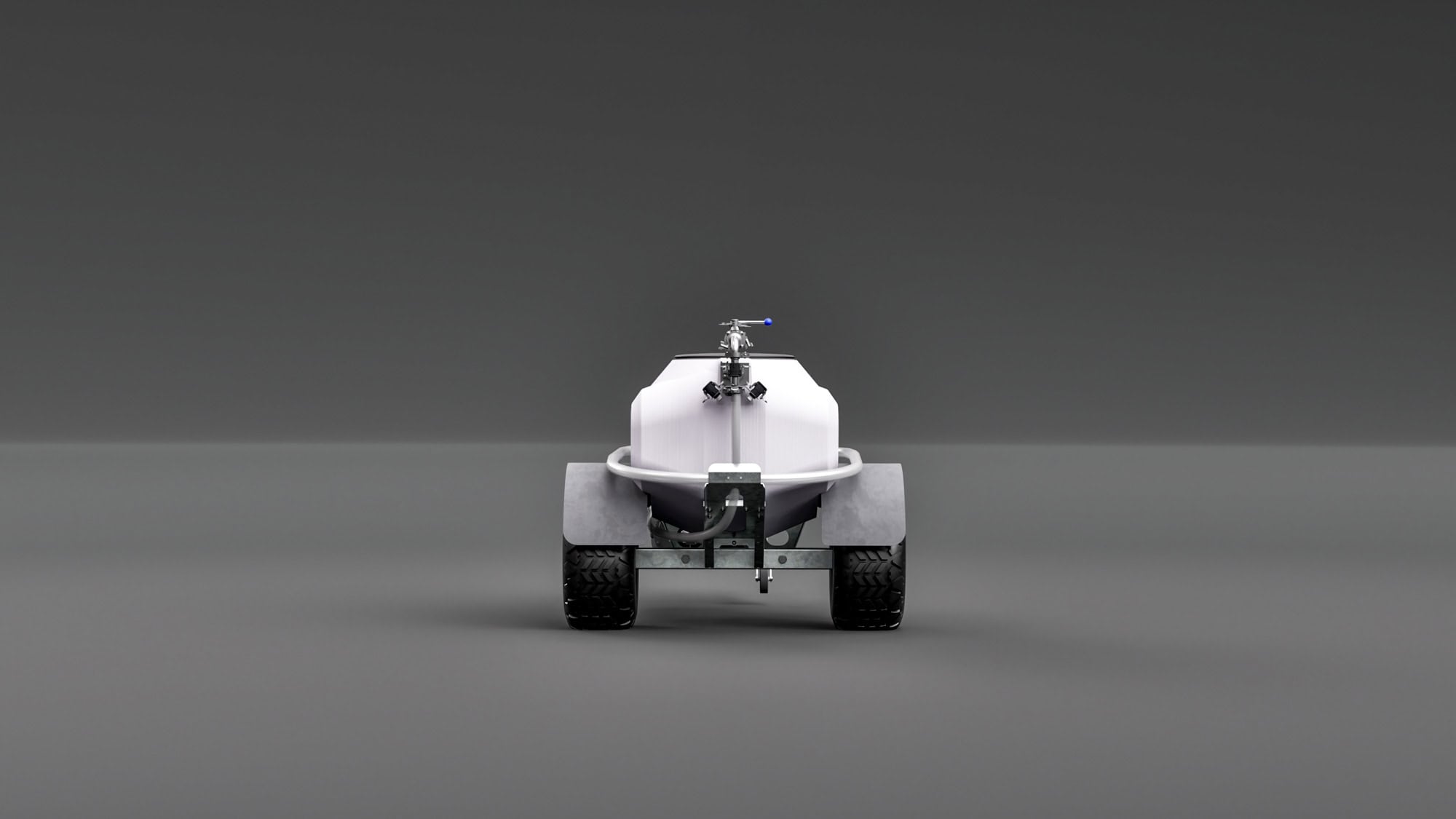

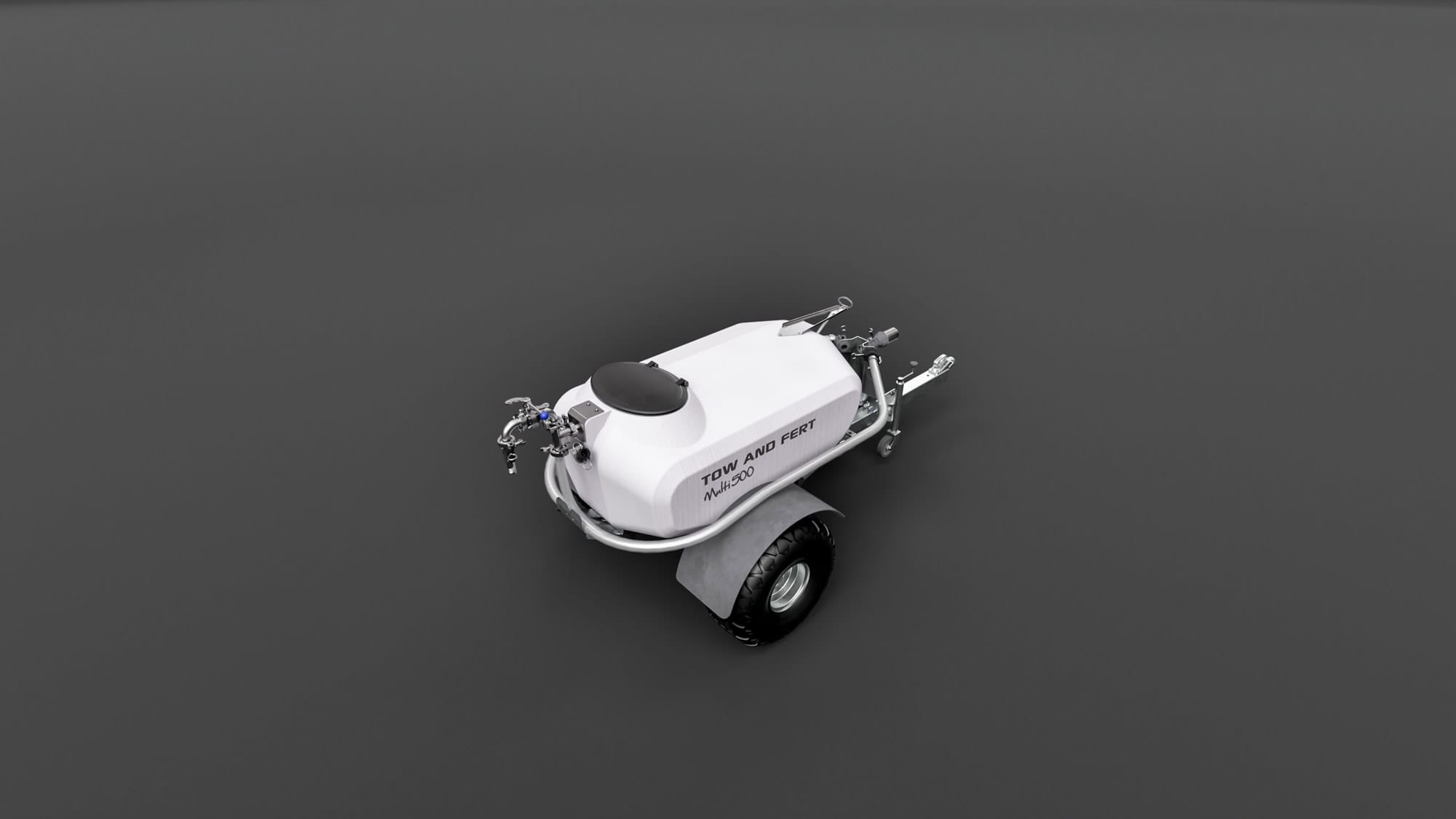

Gallery
Switch above to view Pasture setup.
Boom type
Tank size
500 L
Spray width
8 m
Area per load
4 ha
Application rate
50 – 500 litres/hectare l/ha
Attachment style
Trailed
Attachment vehicle
ATV or side-by-side or Ute
Agitation powered by
On board Petrol Engine – Kohler 5.5hp
Pump model
Metalform Stainless 2” Centrifugal Trash Pump
Pump performance
750 litres per minute at 0 metres lift. Max lift = 3 metres
Pump powered by
On board Petrol Engine
Dry weight
120kg
Full weight
up to 800kg
Size
2.30m (L) x 1.80m (W) x 1.70m (H)
Specifications
Tank size
500 L
Spray width
8 m
Area per load
4 ha
Application rate
50 – 500 litres/hectare l/ha
Attachment style
Trailed
Attachment vehicle
ATV or side-by-side or Ute
Agitation powered by
On board Petrol Engine – Kohler 5.5hp
Pump model
Metalform Stainless 2” Centrifugal Trash Pump
Pump performance
750 litres per minute at 0 metres lift. Max lift = 3 metres
Pump powered by
On board Petrol Engine
Dry weight
120kg
Full weight
up to 800kg
Size
2.30m (L) x 1.80m (W) x 1.70m (H)
Optional extras
Electronic Spray Operation
Control the spray on/off with a wired switch instead of strings
Hort/Tree Crop Kit
Hort/Tree crop attachment (maintains pasture nozzle capablity)

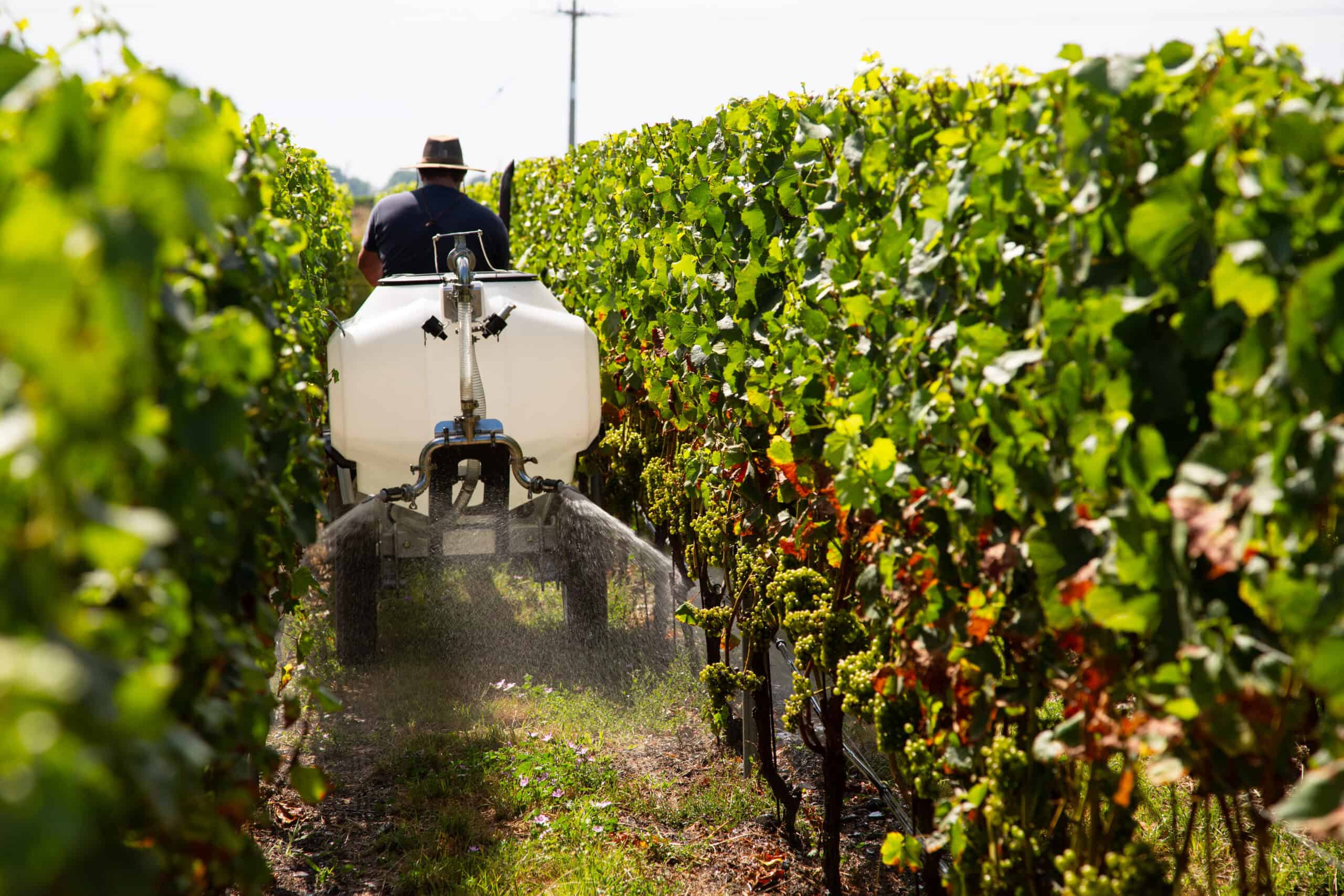

Viticulture Kit
Fan nozzles on a viticulture boom
Compost Basket
A drop in compost basket for making compost extract in the tank.
Description
The Tow and Fert Multi 500 is a completely stand alone machine. It has been developed to be towed behind a large ATV or side-by-side, to be easy to use and for farmers wanting to get started on the Tow and Fert Fertiliser System.

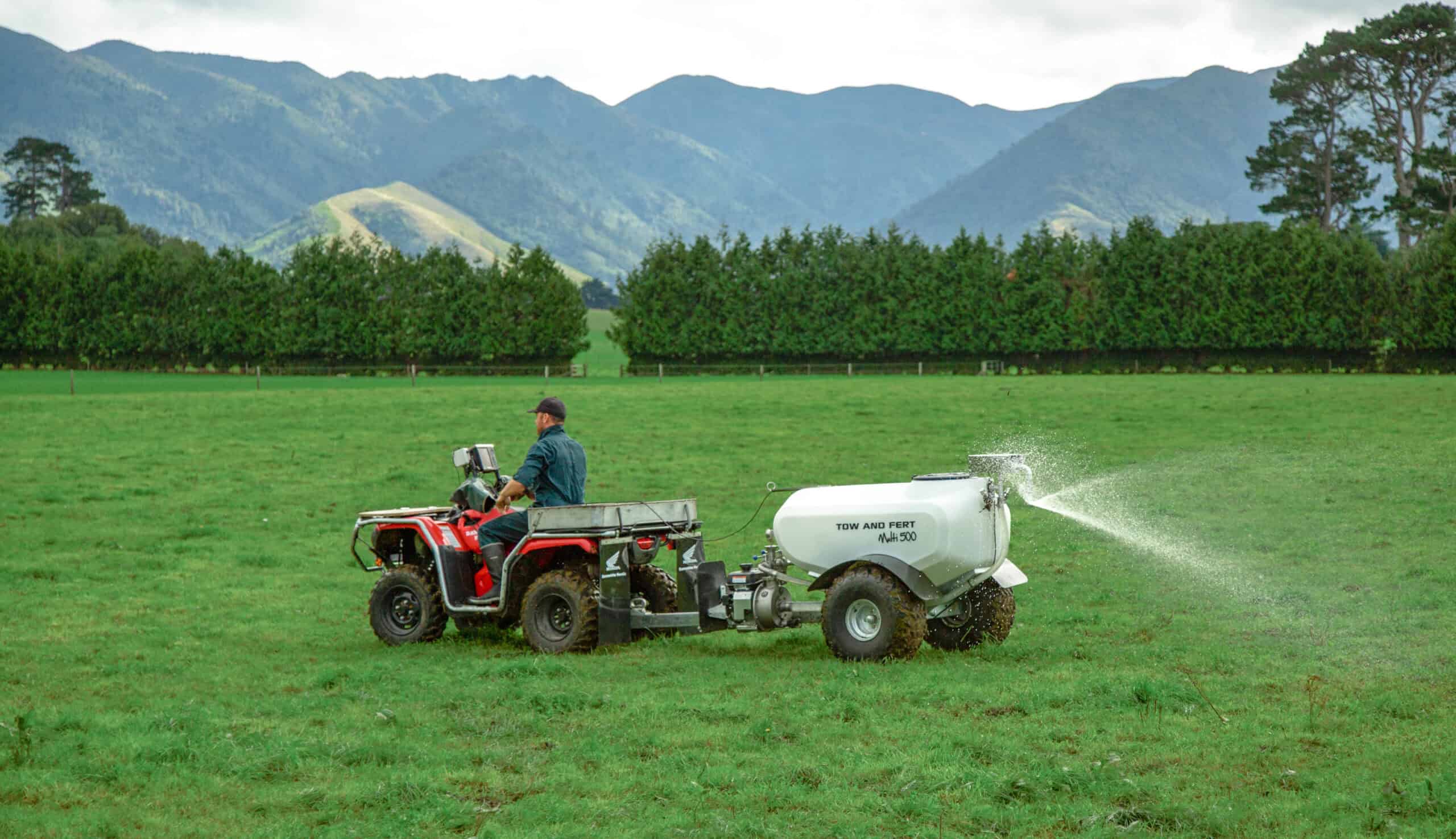

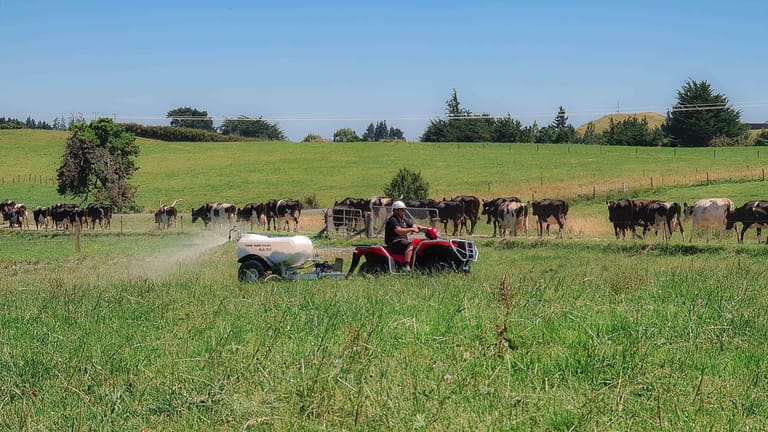

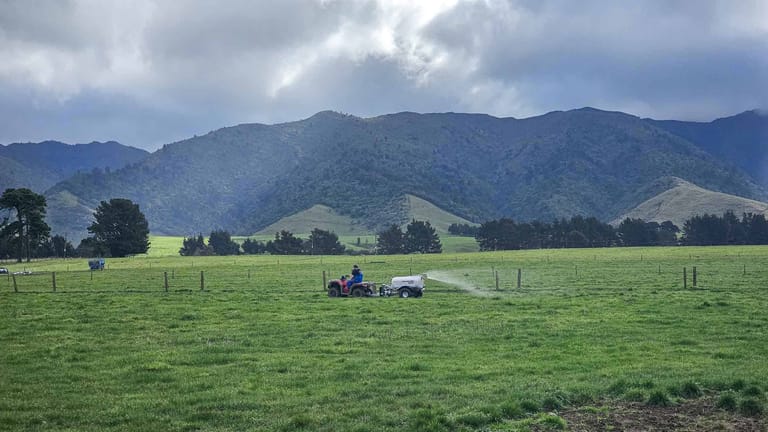

Ideal for smaller farms, the Tow and Fert Multi 500 offers farmers a solution that enables them to spary their fertiliser after the cows have left the paddock for milking. Spraying Magnesium Oxide during spring is another way to maximise your Tow and Fert Multi 500 whilst growing more grass with foliar fertiliser and saving money on the cost of inputs by using less fertiliser.
With a low centre of gravity, the Multi 500 is a very versatile machine on all types of farms.

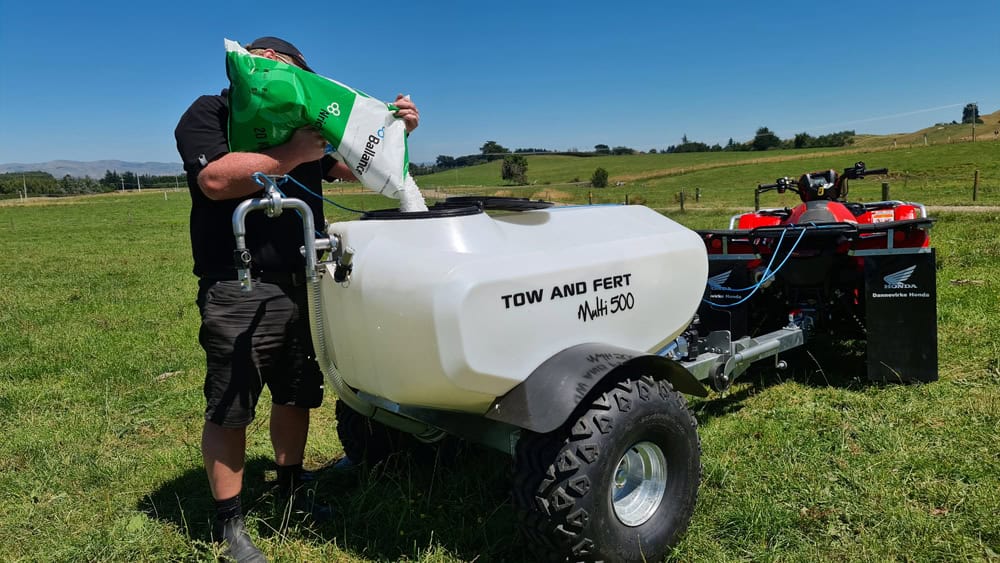

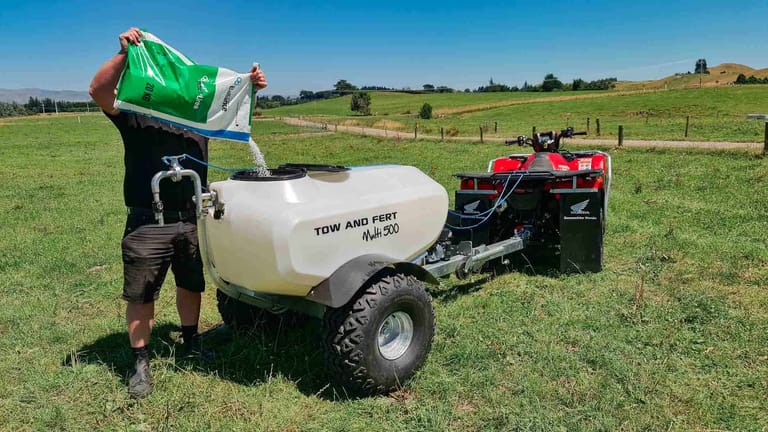

With a 500 litre capacity this machine can easily dissolve up to 150 kgs of urea in cold water, or hold up to 300kgs of dry fine particle product in suspension. The Multi 500 features our patented re-circulation boom design that delivers up to a 7-8 metre spread through one nozzel. The re-circulation boom means fertiliser product cannot settle out in any dead areas found on typical boom sprayers.

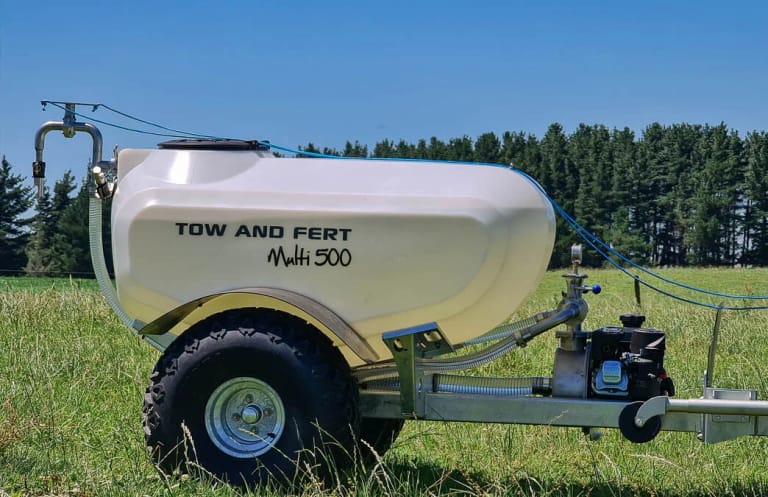

Fitted with a specifically designed 100% Stainless Steel trash pump and a silicon carbide mechanical seal, the Tow and Fert is built to last. All fittings are removable without a toolbox and can be changed in the field.
Depending on application rate, the Multi 500 has the capacity to cover approx. 3-4 hectares in 25 mins.
