Nurse Wagon
Unrivaled Versatility. Spray and Supply Ultra Fine Particles.
Tow and Fert MultiCrop 4000

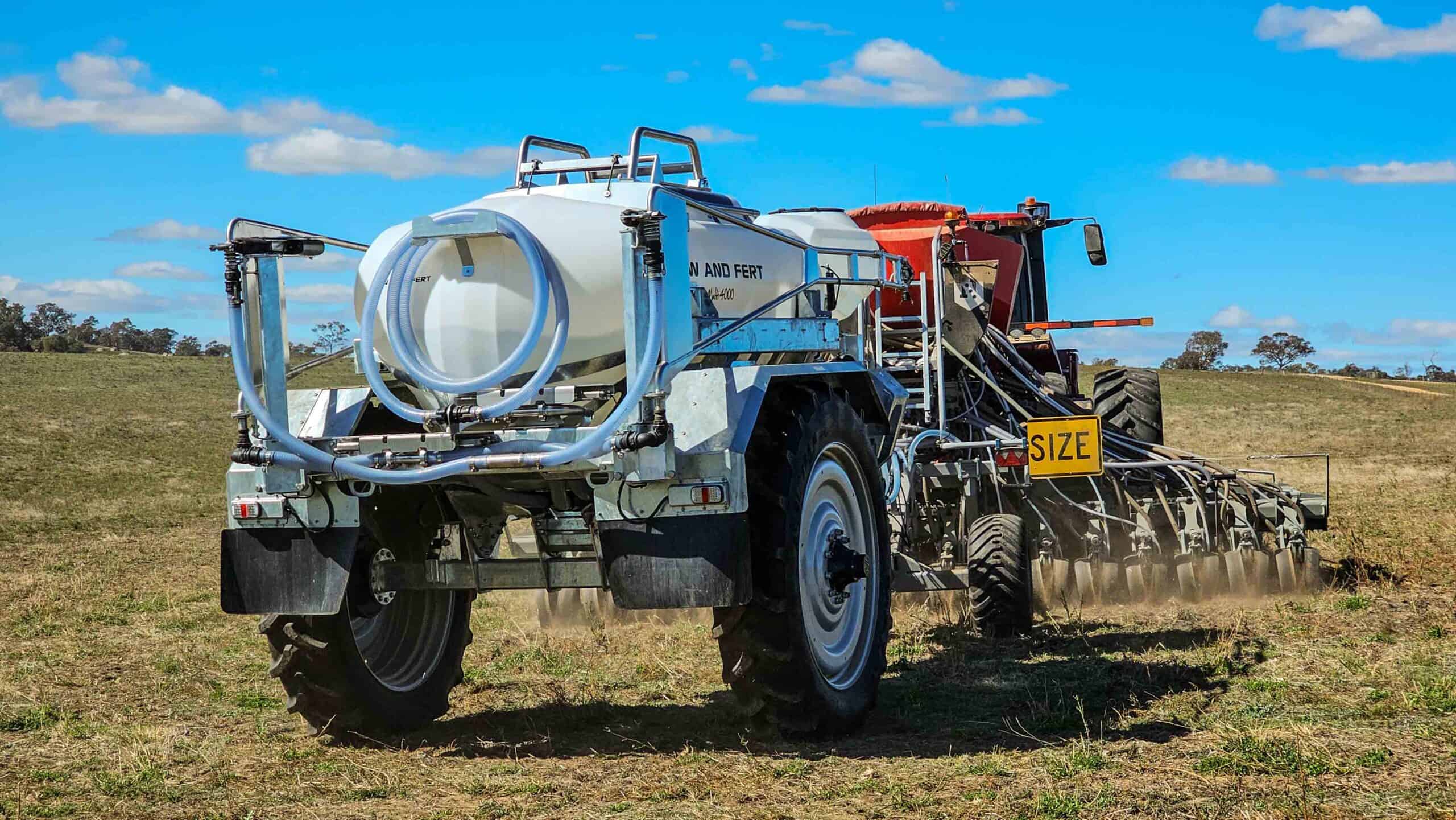

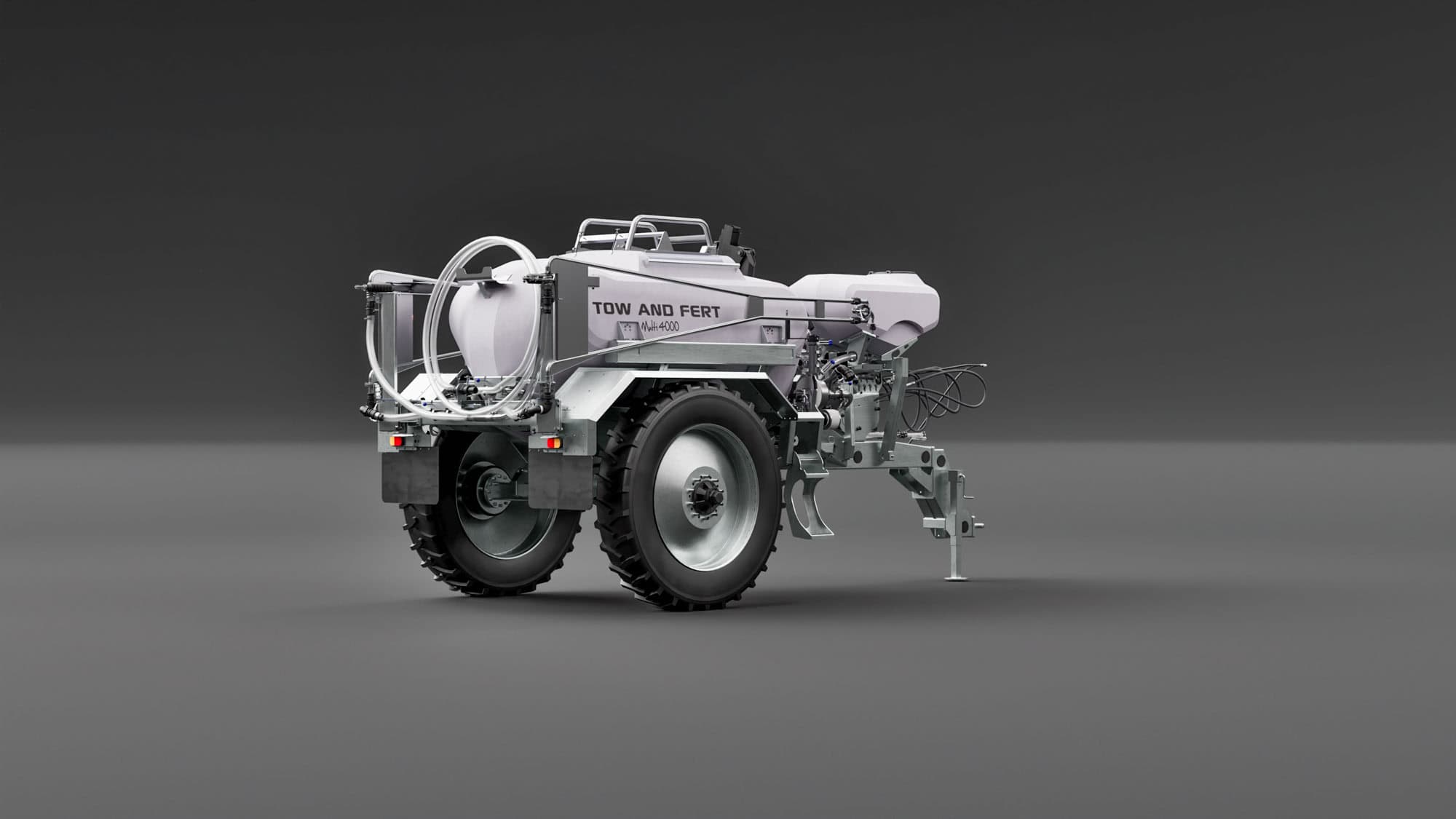

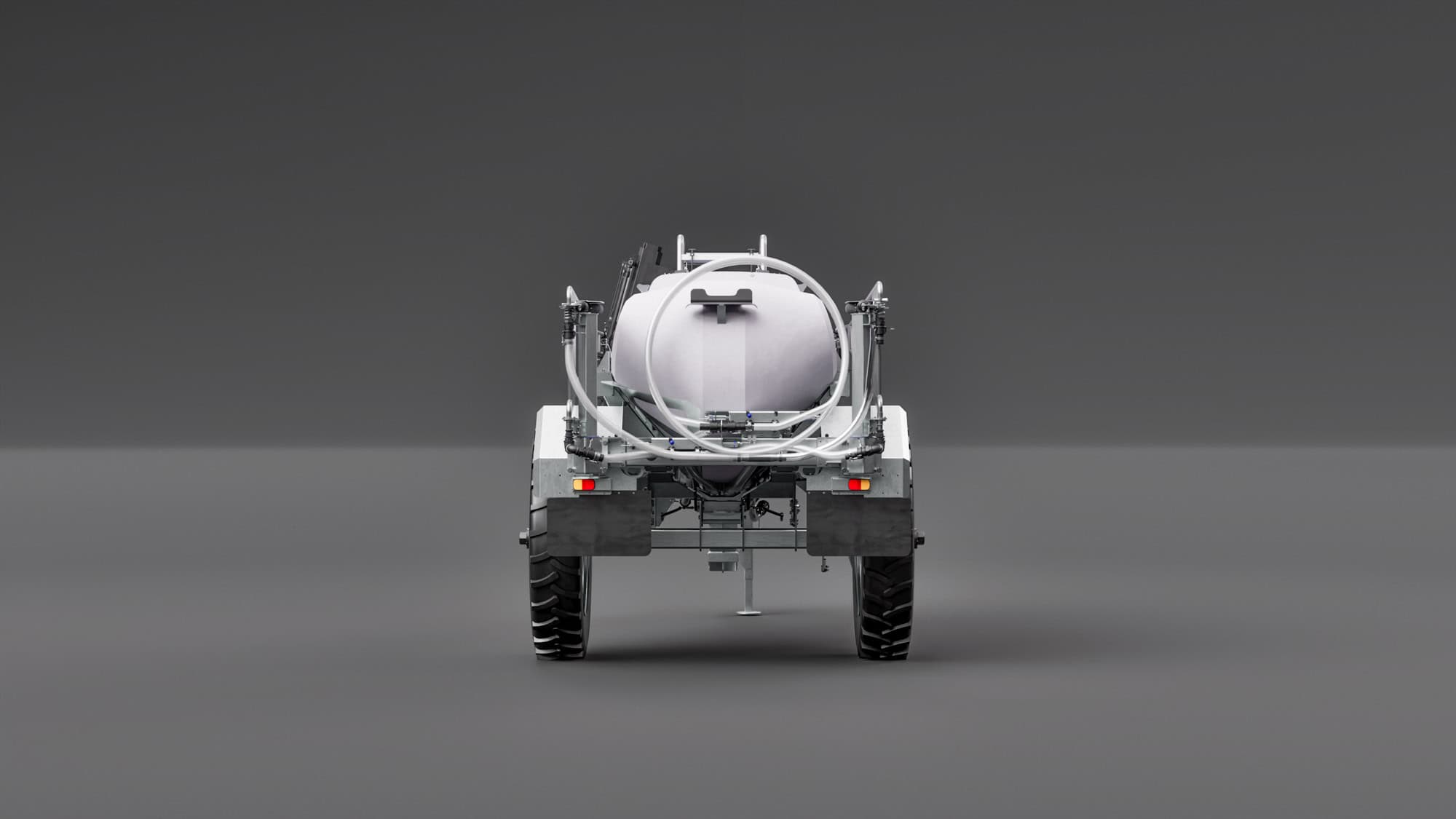

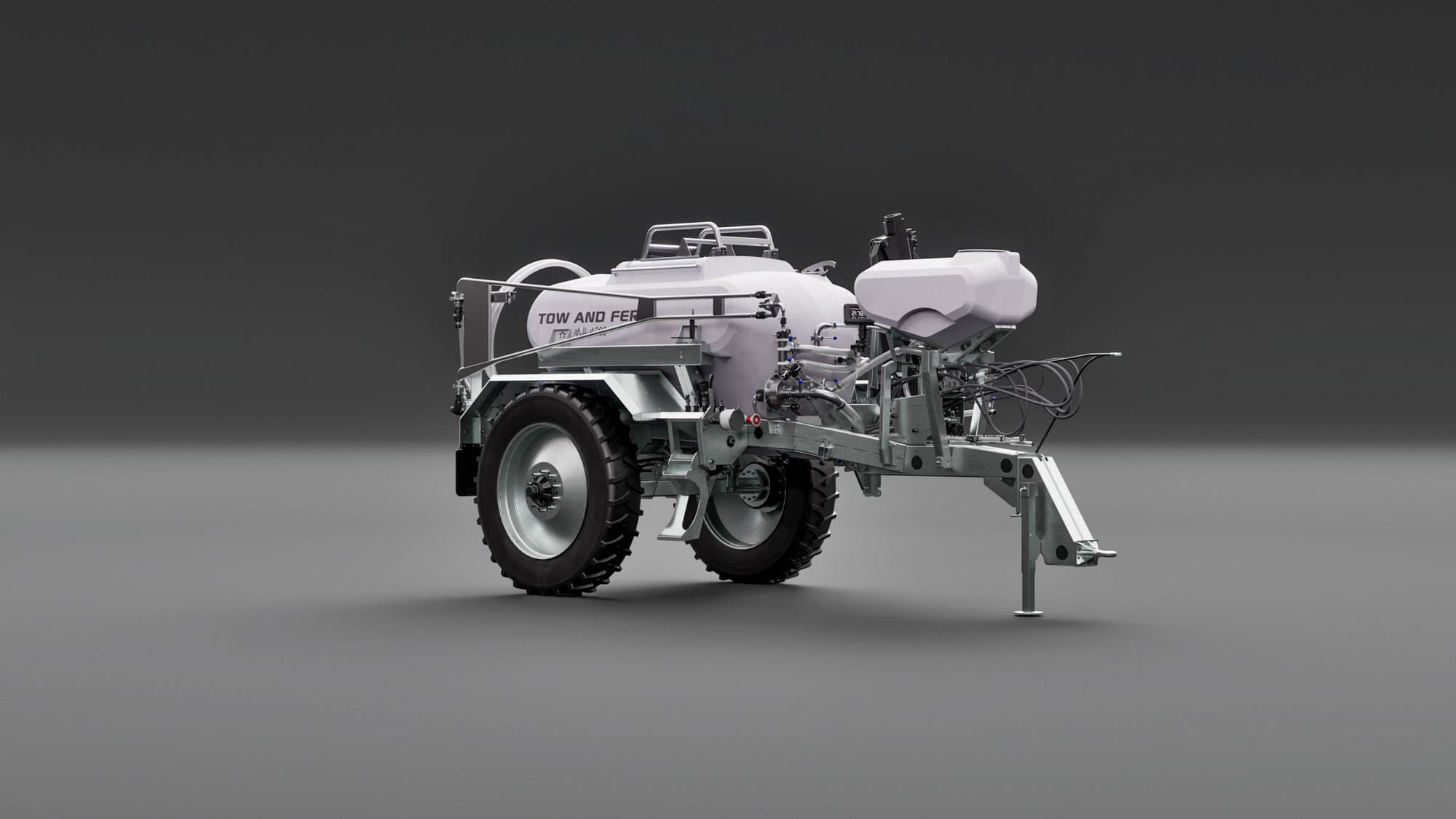

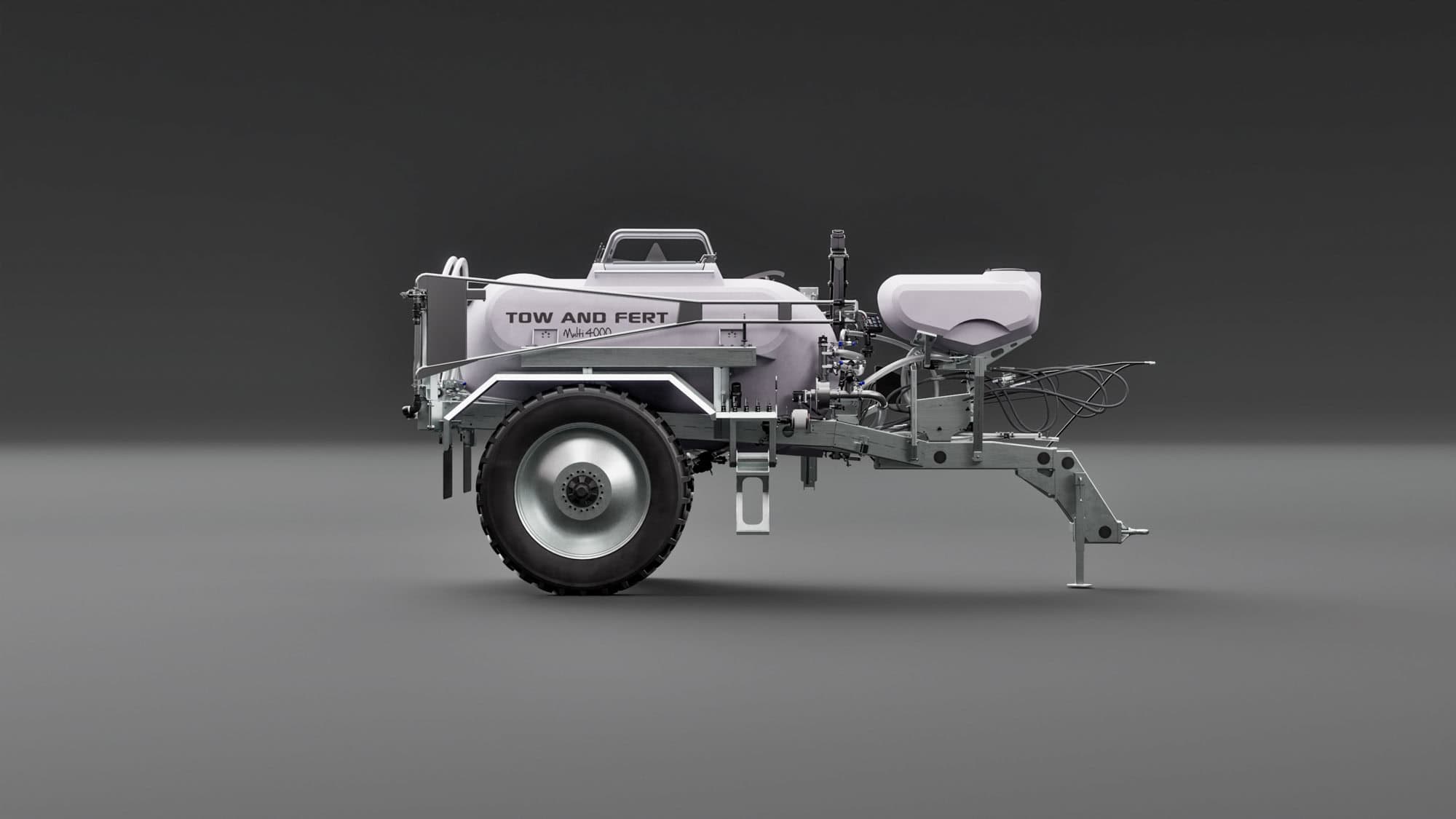

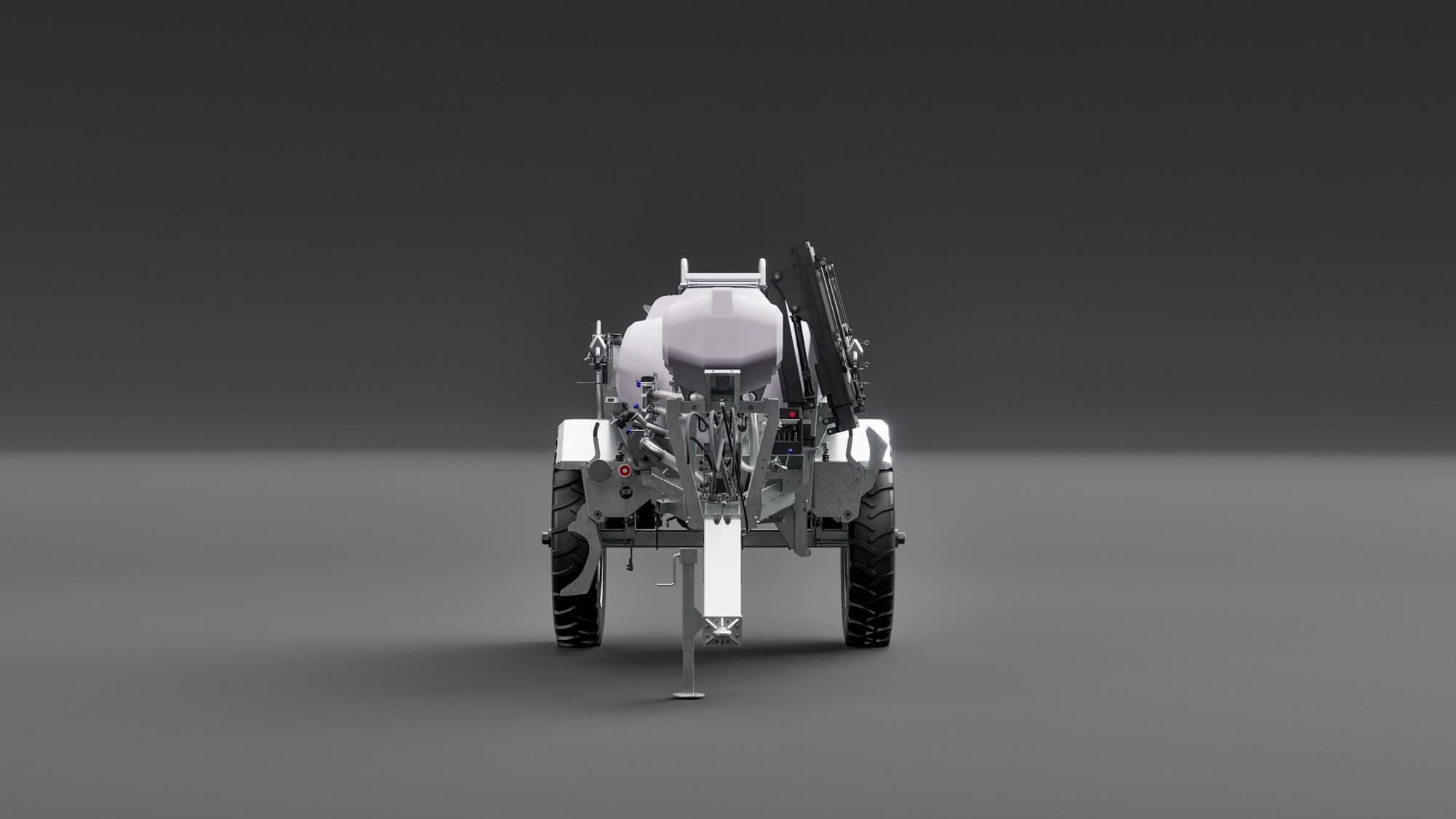

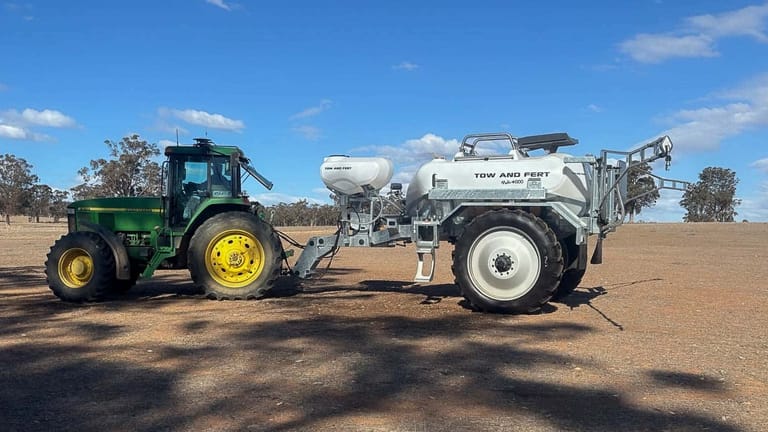

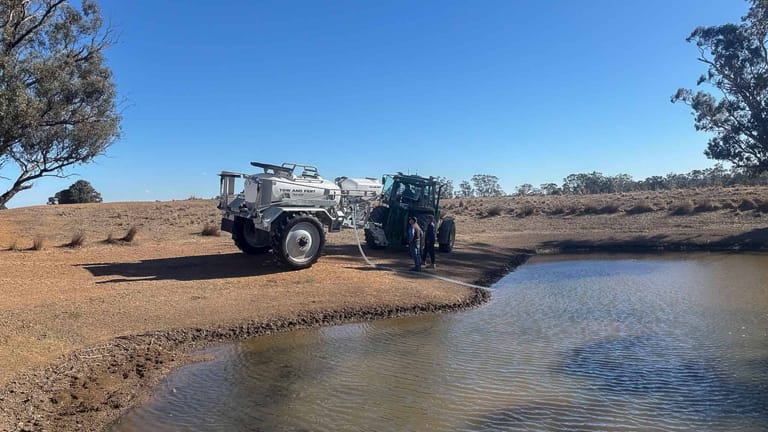

The MultiCrop 4000 is a dual purpose ultra fine particle sprayer and/or nurse wagon designed for the cropping industry. Apply biologicals, ultra-fine particles, insecticides, herbicides without blocking nozzles.
Tank size
4000 L
Spray width
24 m
Area per load
40 ha
Application rate
50 – 500 litres/hectare l/ha
Attachment style
Trailed (optional dolly)
Attachment vehicle
160hp tractor or greater
Gallery
Tank size
4000 L
Spray width
24 m
Area per load
40 ha
Application rate
50 – 500 litres/hectare l/ha
Attachment style
Trailed (optional dolly)
Attachment vehicle
160hp tractor or greater
Agitation powered by
55 L/min hydraulic motor
Pump model
Metalform Stainless 3” Centrifugal Trash Pump
Pump performance
1200 litres per minute at 0 metres lift. Max lift = 4 metres
Pump powered by
Hydraulics – 33 litres/min
Dry weight
4,100kg
Full weight
up to 10,600kg (depending on mix SG)
Size
6.20m (L) x 2.80m(min) – 3.40m (max) (W) x 3.50m (H)
Specifications
Tank size
4000 L
Spray width
24 m
Area per load
40 ha
Application rate
50 – 500 litres/hectare l/ha
Attachment style
Trailed (optional dolly)
Attachment vehicle
160hp tractor or greater
Agitation powered by
55 L/min hydraulic motor
Pump model
Metalform Stainless 3” Centrifugal Trash Pump
Pump performance
1200 litres per minute at 0 metres lift. Max lift = 4 metres
Pump powered by
Hydraulics – 33 litres/min
Dry weight
4,100kg
Full weight
up to 10,600kg (depending on mix SG)
Size
6.20m (L) x 2.80m(min) – 3.40m (max) (W) x 3.50m (H)
Optional extras
In-cab Rate Assist
Crane Kit
Section Control
Flush Tank
Tow Dolly
Compost Basket
Description

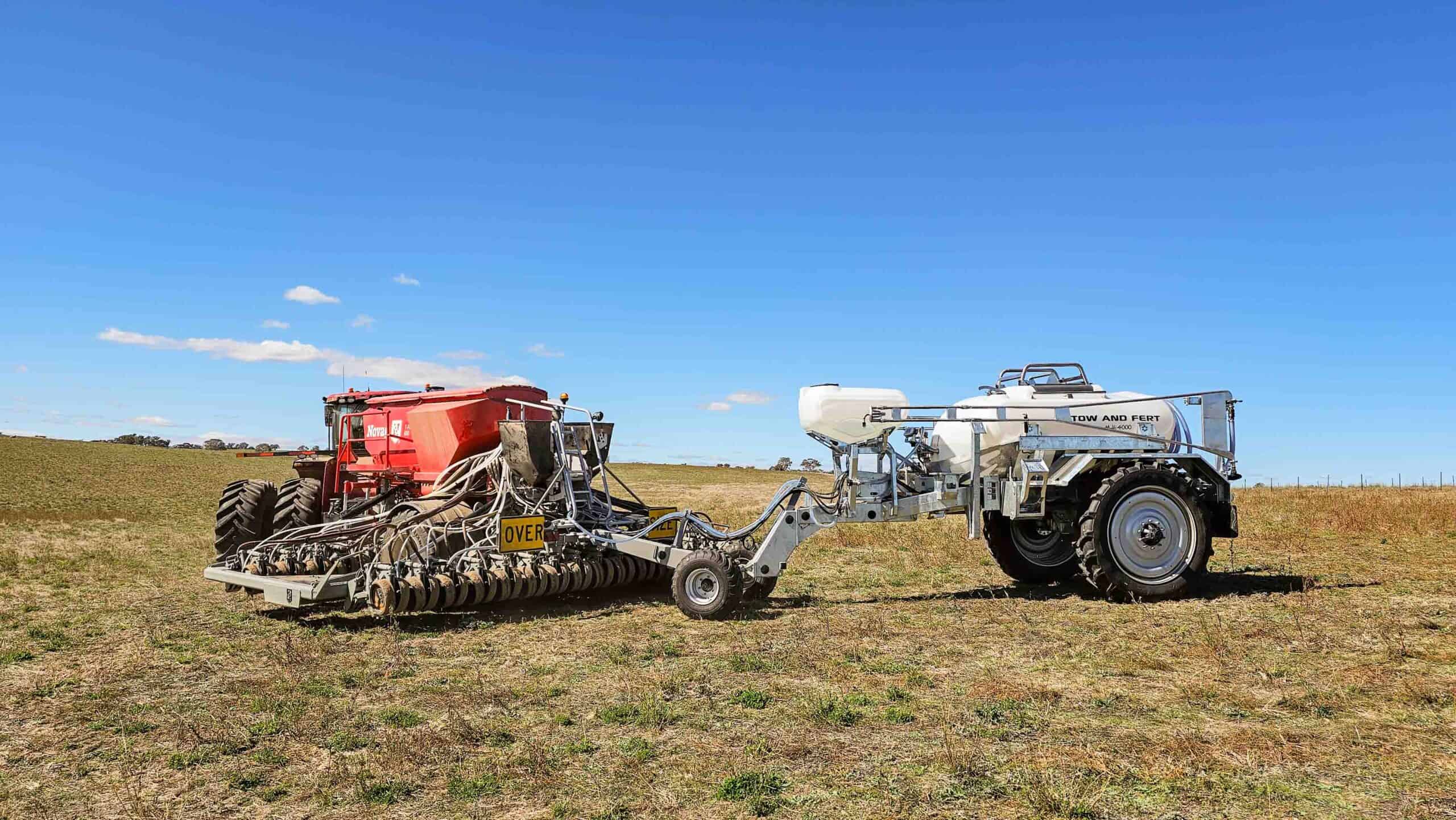

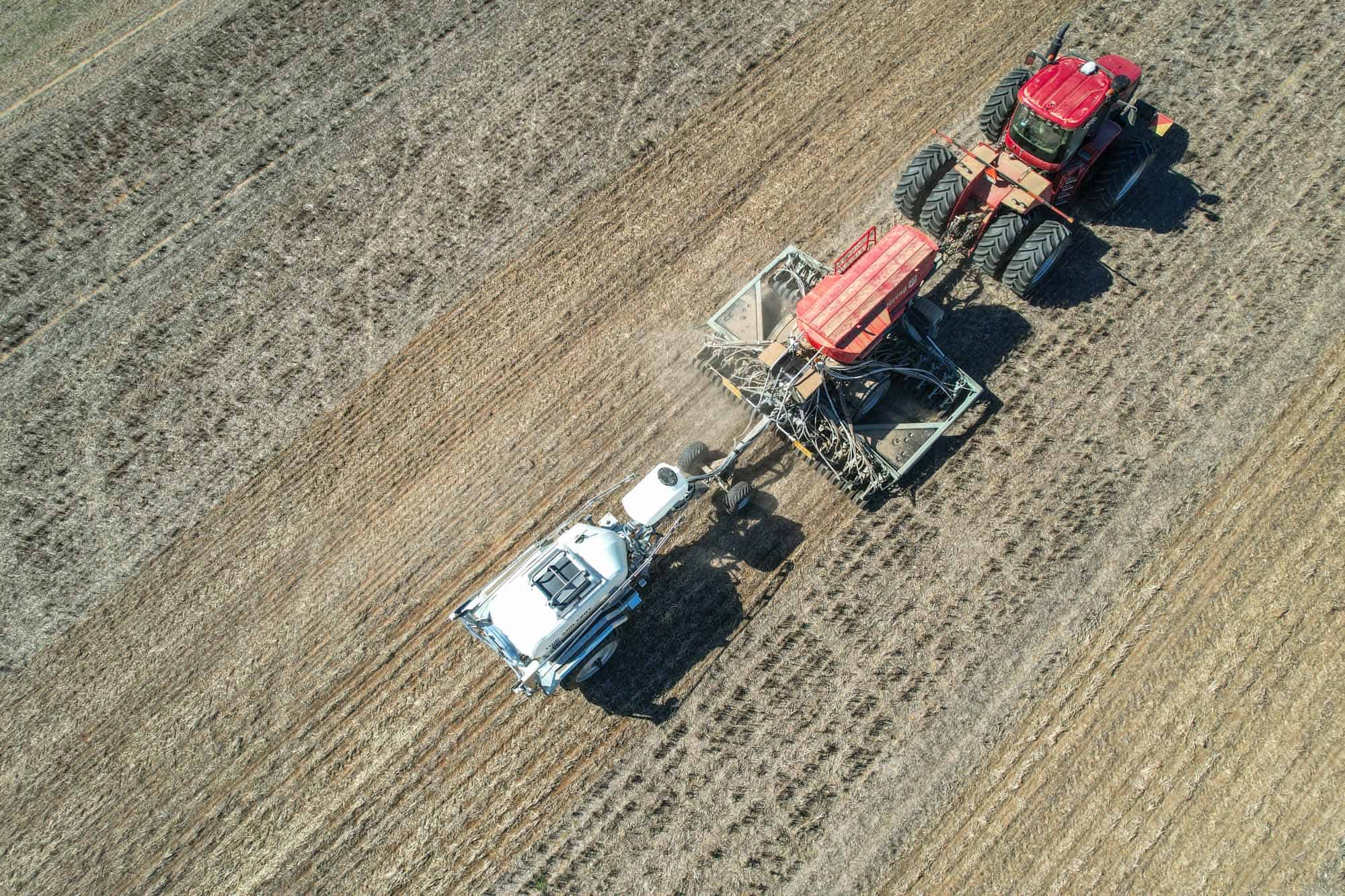

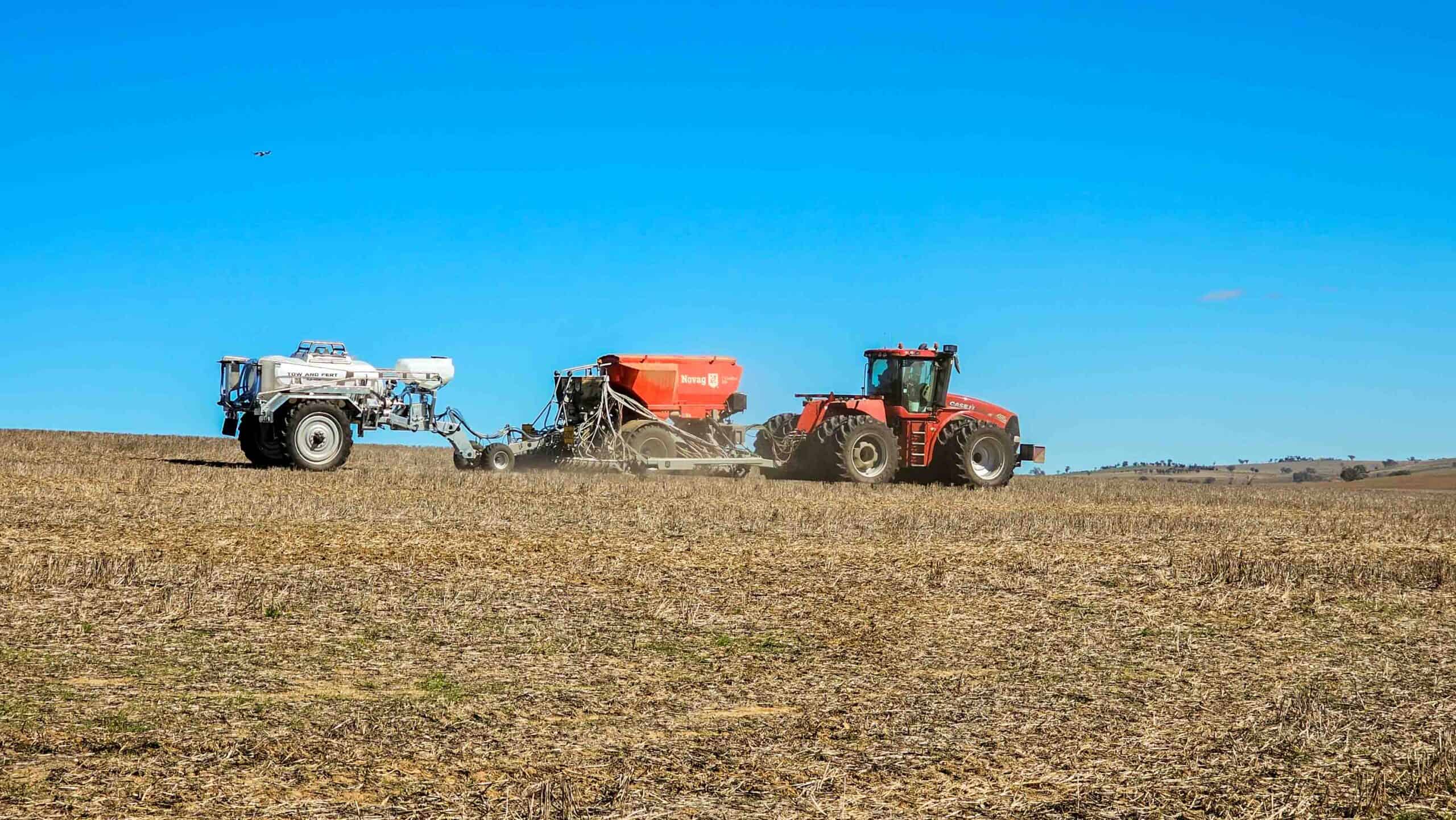

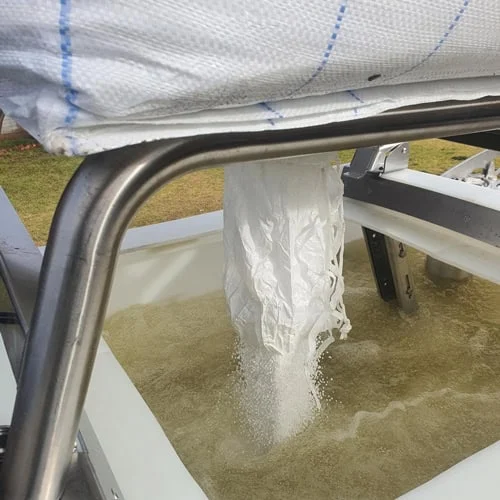

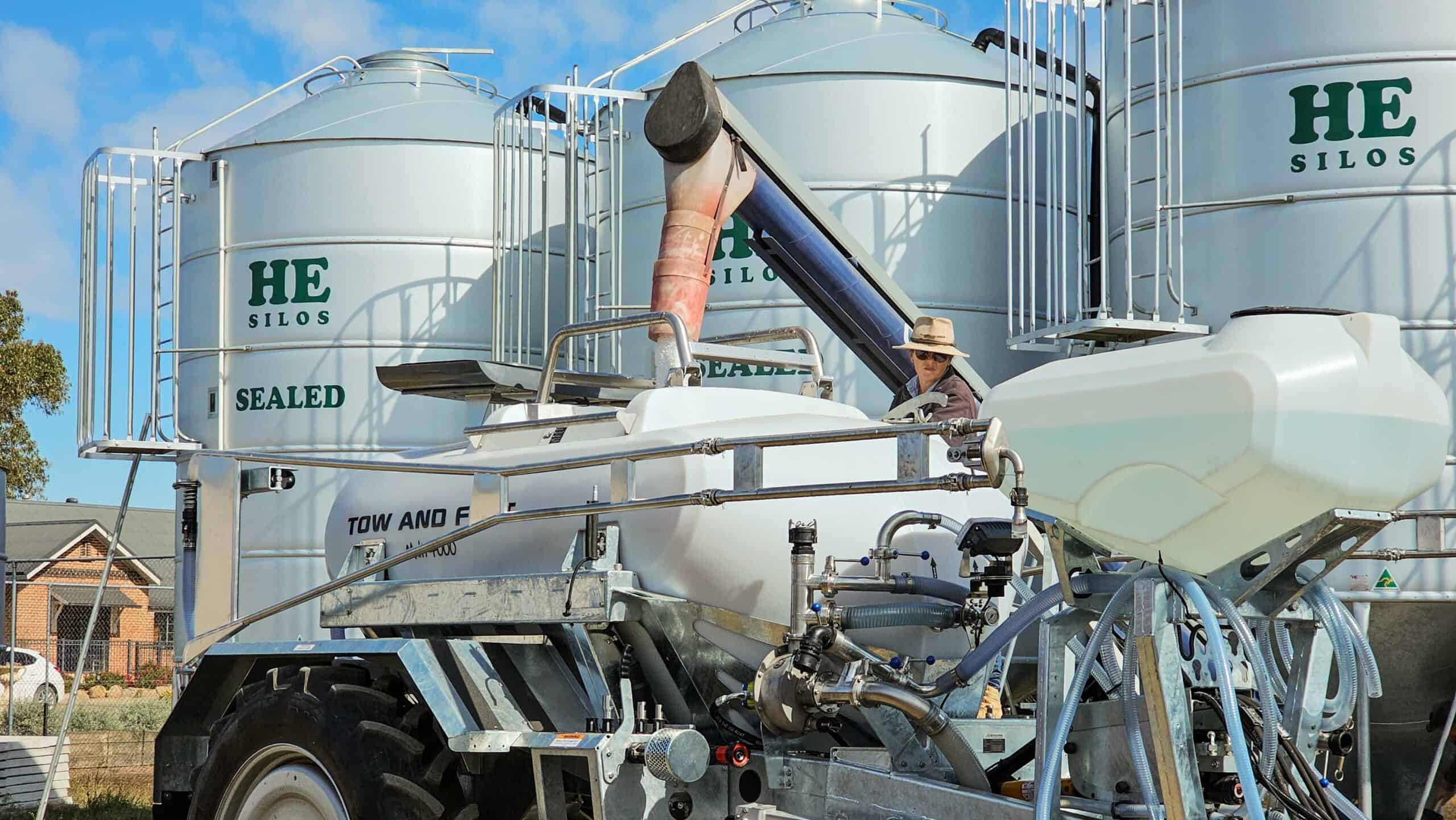

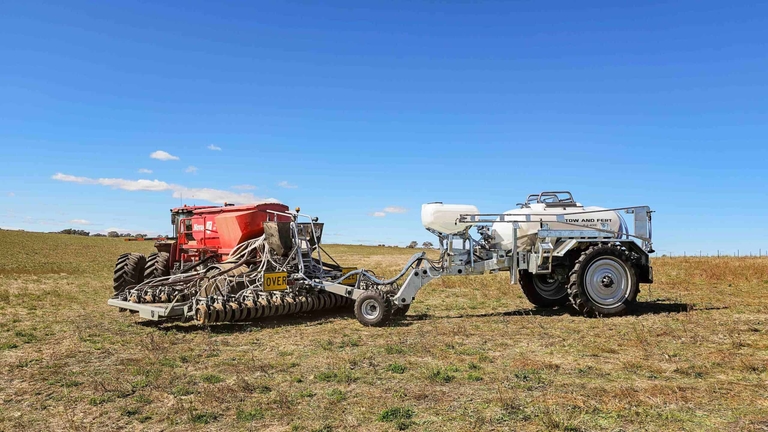

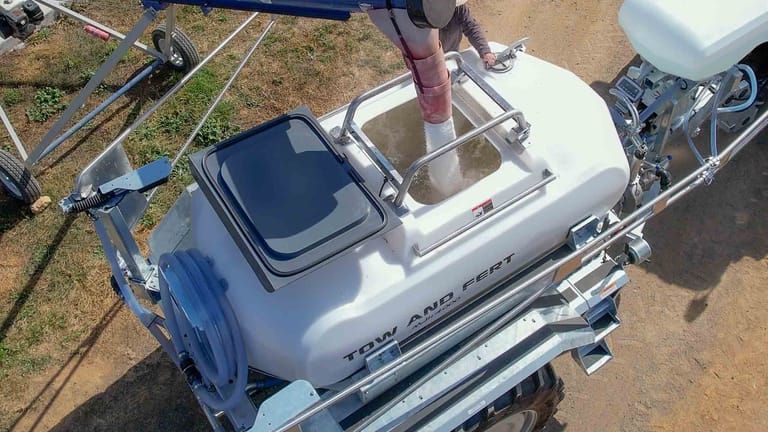

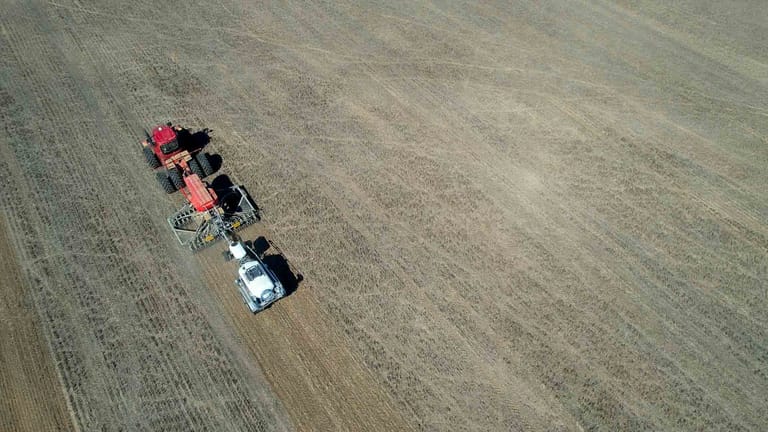

The Tow and Fert MultiCrop 4000 redefines agricultural efficiency, effortlessly dissolving solid fertilizers for foliar application, maintaining and evenly distributing ultra-fine particles. Beyond its spraying capabilities, it serves as an indispensable nurse wagon, seamlessly supplying a range of fertilisers—conventional, biological, or organic, along with ultra-fine particles to air seeders, rippers, or seed drills. This makes the MultiCrop 4000 the ultimate in versatility, and the leading machine in delivering ultra-fine particle as a supply or spray.
With our patented boom circulation design the purpose built stainless steel nozzles remain operational and free from blockages while applying the most difficult of mixes.

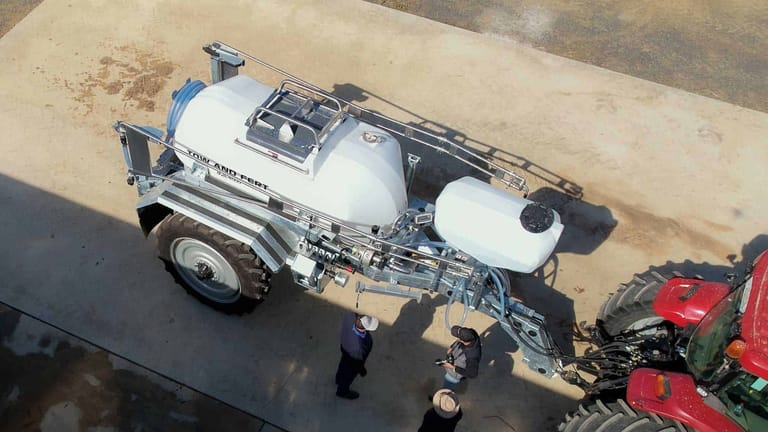

The 500L flush tank ensures the system is flushed straight after use reducing the risk of build up and prolonging the life of the machine.
For full pricing information please get in touch on 0800 337 747 or email sales@towandfert.co.nz.
